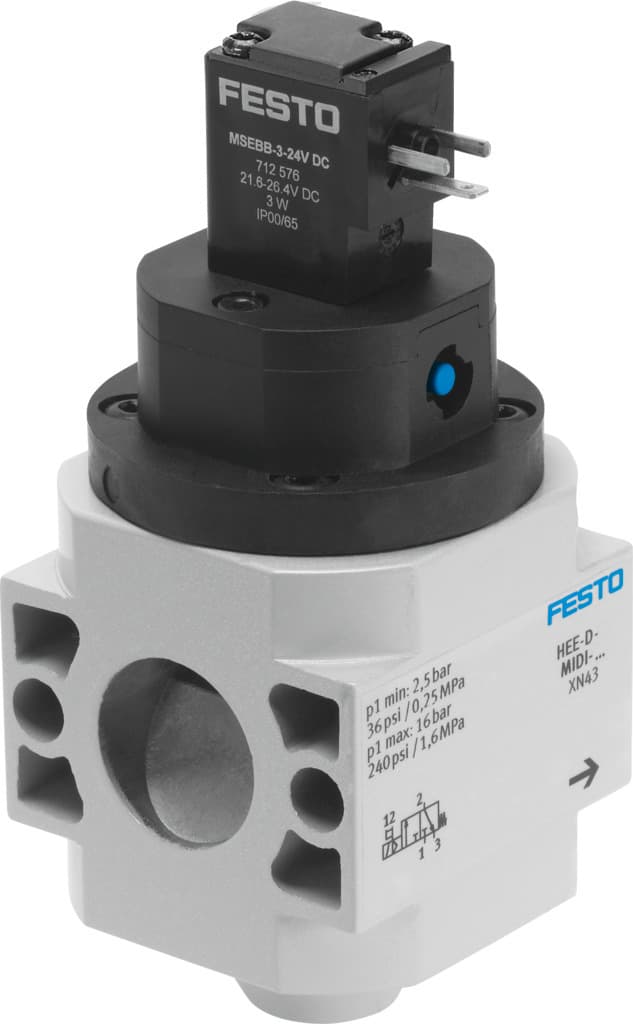

Key Features
- 1Ensure reliable operation with compressed air and inert gases per ISO 8573-1:2010. 2、Operate effectively across a wide 2.5 to 16 bar pressure range. 3、Utilize a soft sealing principle for efficient and durable performance. 4、Benefit from a mechanical spring reset for quick, reliable position return. 5、Rely on die-cast aluminum housing and NBR seals for longevity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Piston gate valve | Actuation type | Electrical |
| Sealing principle | Soft | Exhaust air function | Without flow control option |
| Manual override | Detenting | Reset method | Mechanical spring |
| Type of control | Pilot-controlled | Symbol | 00991008 |
| Valve function | 3/2, closed, monostable | Operating pressure | 2.5bar 16bar |
| Lap | Overlap | Duty cycle | 100% |
| Coil characteristics | 24 V DC: 2.5 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Type of mounting | Line installation With accessories |
| Mounting position | Any | Flow direction | Non-reversible |
| Product weight | 500g | Pneumatic connection 3 | G1/4 |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Electrical connection | Form C Plug as per DIN EN 175301-803 |
| Signal status display | With accessories | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 172959 |
Specifications may be subject to change without notice
