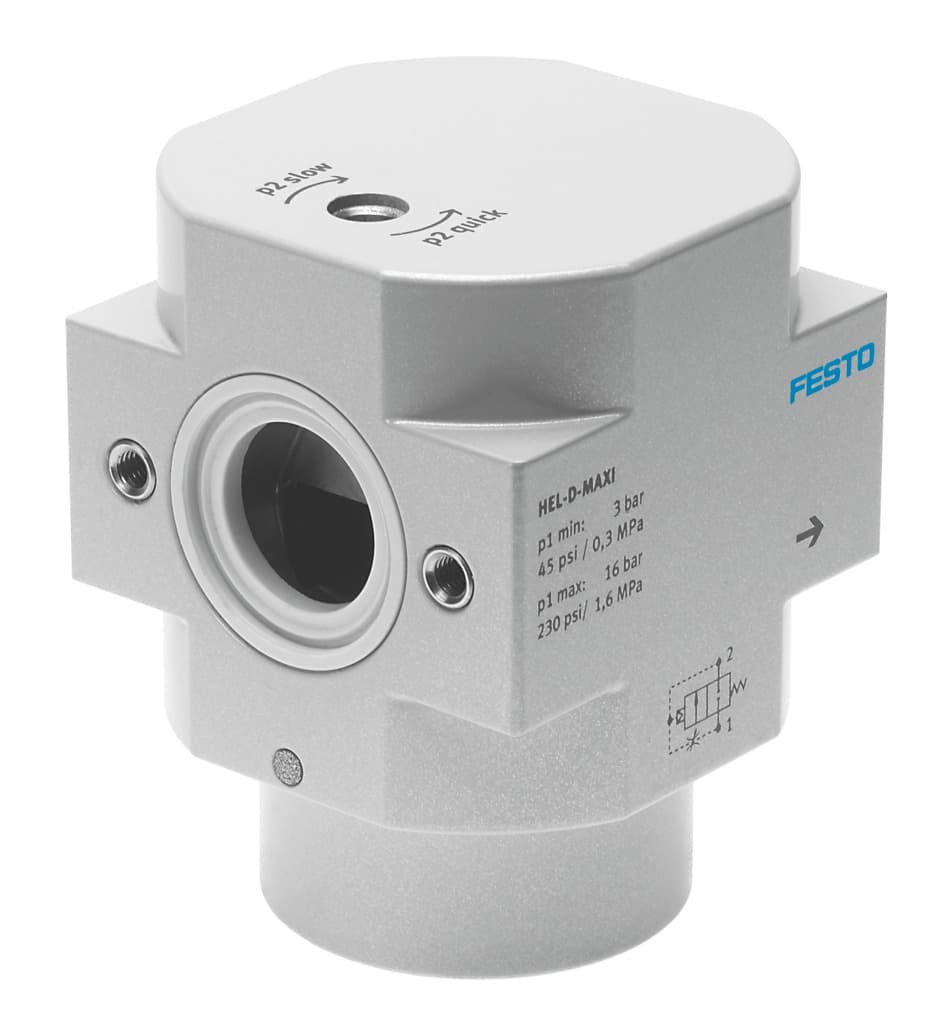

Key Features
- 1Ensure reliable compressed air control with soft-sealing and pneumatic actuation. 2、Precisely throttle exhaust-air for optimal system performance. 3、Install in any position for maximum layout flexibility. 4、Maintain consistent operation via mechanical spring reset. 5、Support pressures from 3 to 16 bar for diverse applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Exhaust air function | With flow control option | Actuation type | Pneumatic |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | None | Structural design | Piston gate valve |
| Reset method | Mechanical spring | Type of control | Direct |
| Flow direction | Non-reversible | Symbol | 00991513 |
| Valve function | 2/2, closed, monostable | Operating pressure | 3bar 16bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 394g |
| Type of mounting | Line installation | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 170692 |
Specifications may be subject to change without notice
