Key Features
- 1Ensure safe operating pressure for 0.35 million cycles.
- 2Feature soft sealing for reliable pneumatic operation.
- 3Design with piston slide and spring reset.
- 4Allow flexible mounting with pneumatic actuation.
- 5Provide vibration resistance for robust performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Exhaust air function | With flow control option | Actuation type | Pneumatic |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | None | Structural design | Piston gate valve |
| Reset method | Mechanical spring | Type of control | Direct |
| Flow direction | Non-reversible | Symbol | 00991513 |
| Valve function | 2/2, closed, monostable | Operating pressure | 3bar 16bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 270g |
| Type of mounting | Line installation | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 170691 |
Specifications may be subject to change without notice

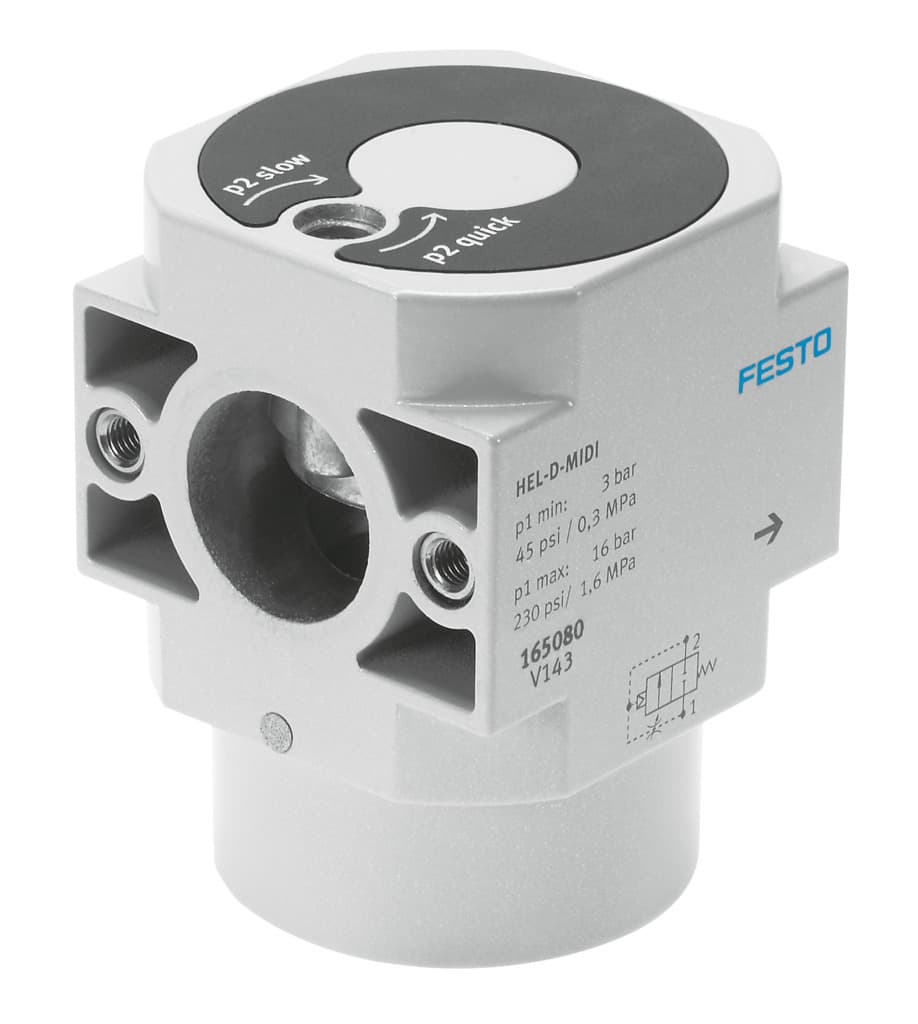

Still deciding on hel-d-midi?
