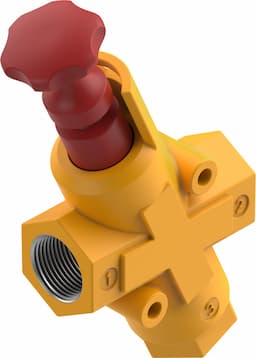

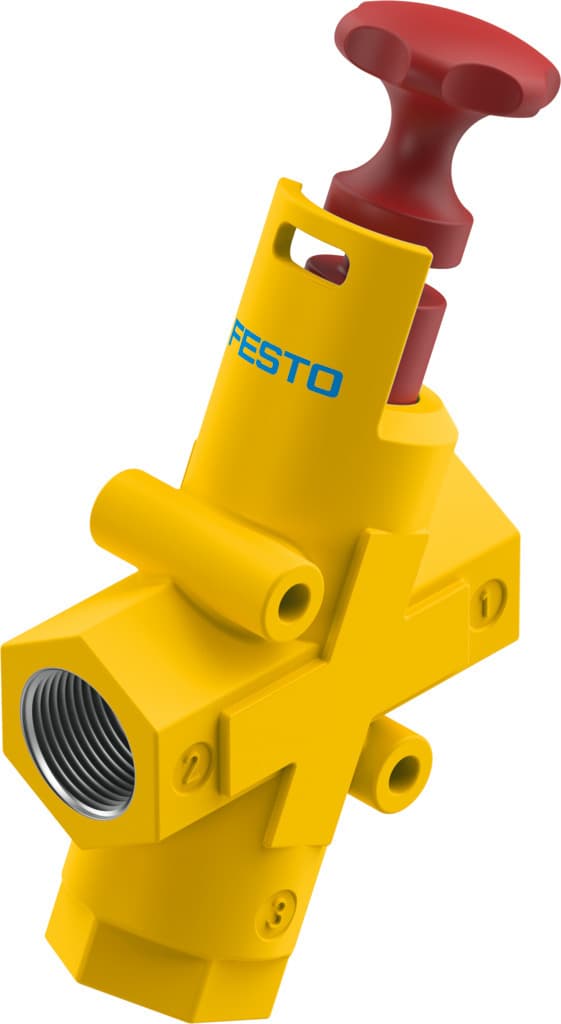

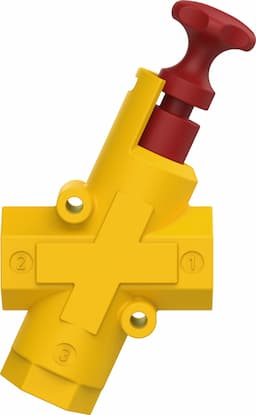

he-n3/4-lo
Product ID:7762
Updated: 2026/4/3
Key Features
- 1Utilize soft sealing for reliable operation and minimal wear. 2、Employ direct piloting for quick compressed air control. 3、Achieve corrosion resistance class 3 for harsh environments. 4、Ensure non-reversible flow for consistent pneumatic performance. 5、Operate within a 1 to 10 bar pressure range for versatility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Sealing principle | Soft | Exhaust air function | Without flow control option |
| Type of control | Direct | Symbol | 00991672 |
| Operating pressure | 1bar 10bar | C value | 36.28l/sbar |
| b-value | 0.21 | Standard nominal flow rate | 8000l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Corrosion resistance class (CRC) | 3 - High corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Type of mounting | Screw-in |
| Mounting position | Any | Flow direction | Non-reversible |
| Product weight | 1000g | Pneumatic connection 1 | 3/4 NPT |
| Pneumatic connection 2 | 3/4 NPT | Pneumatic connection 3 | 1 NPT |
| Seals material | NBR TPE-U(PU) | Housing material | Die-cast aluminum |
| Manufacturer ID | 197131 |
Specifications may be subject to change without notice
