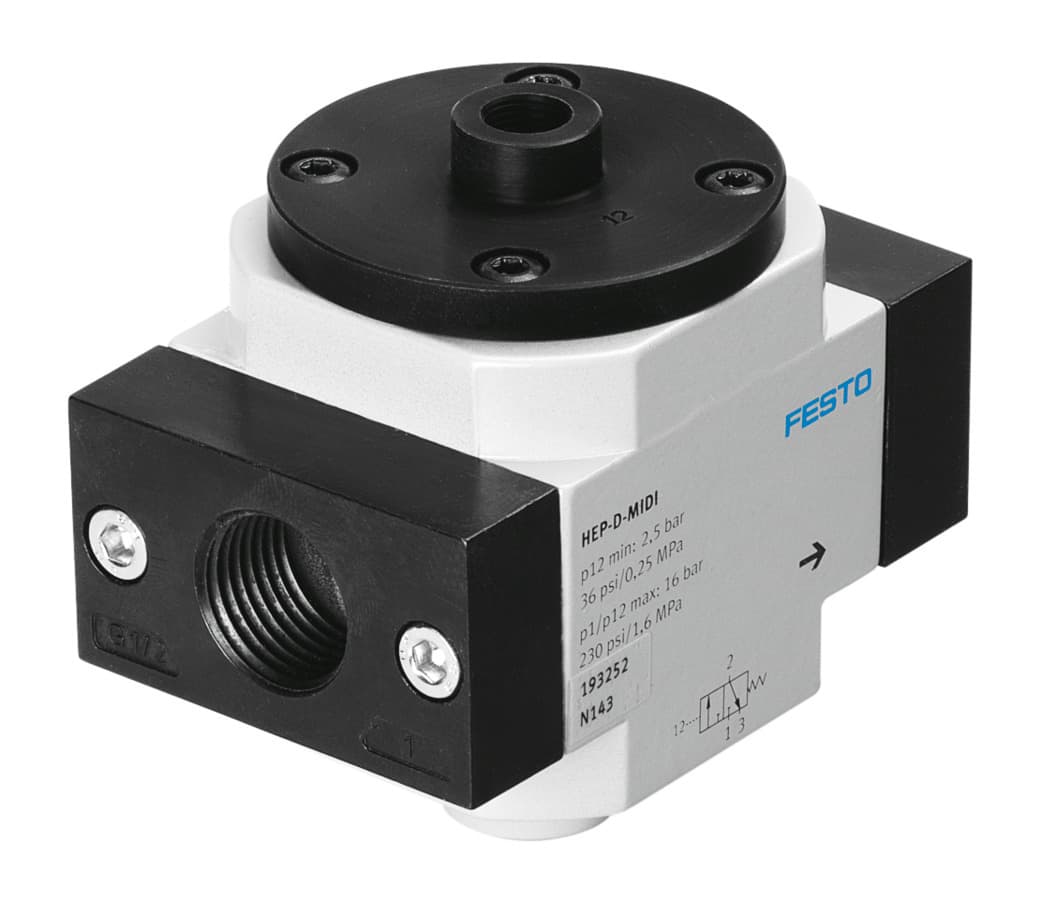

Key Features
- 1Deliver a high flow rate of 4100 l/min for efficient system control. 2、Select from G3/4, G1/4, or G1/8 coupling options for flexible installation. 3、Operate reliably with pneumatic actuation in diverse industrial environments. 4、Ensure consistent on/off control with the 3/2-way normally closed design. 5、Withstand harsh conditions thanks to a rugged and durable construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Piston gate valve | Actuation type | Pneumatic |
| Sealing principle | Soft | Exhaust air function | Without flow control option |
| Manual override | None | Reset method | Mechanical spring |
| Symbol | 00991173 | Valve function | 3/2, closed, monostable |
| Operating pressure | 0bar 16bar | Pilot pressure | 3bar 16bar |
| C value | 16.2l/sbar | b-value | 0.47 |
| Standard nominal flow rate | 4100l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Type of mounting | Line installation With accessories | Mounting position | Any |
| Flow direction | Non-reversible | Product weight | 500g |
| Pneumatic connection 1 | G3/4 | Pneumatic connection 2 | G3/4 |
| Pneumatic connection 3 | G1/4 | Pilot air port 12 | G1/8 |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 193253 |
Specifications may be subject to change without notice
