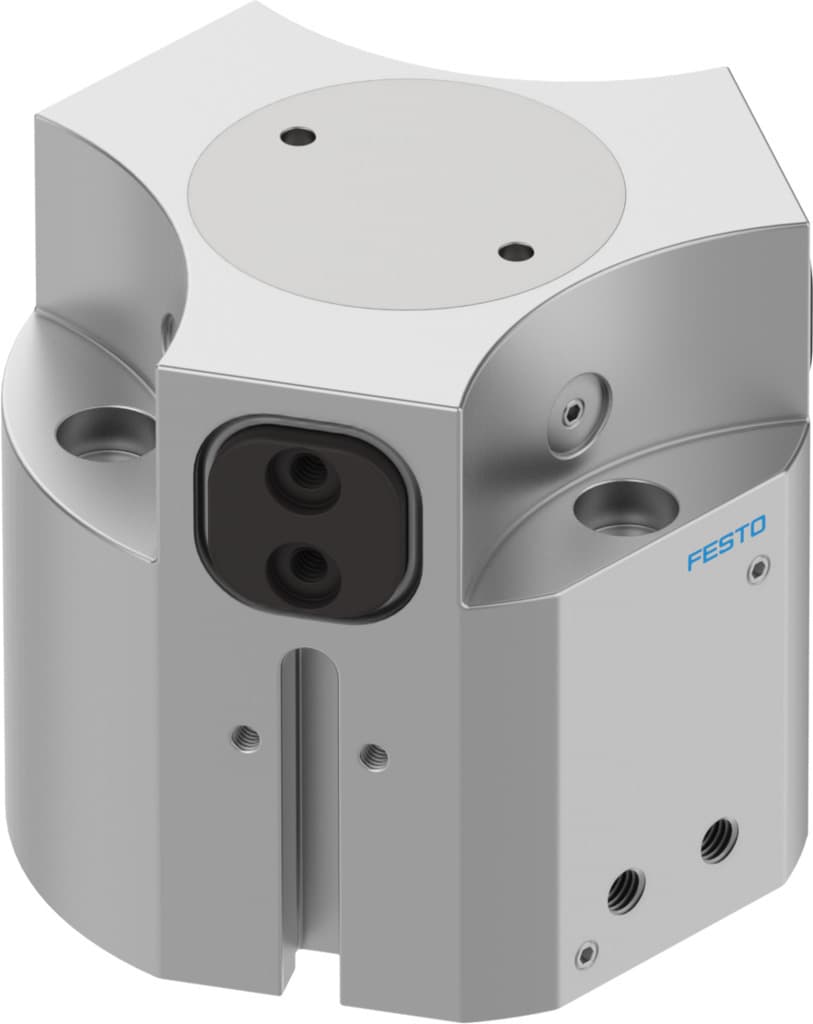

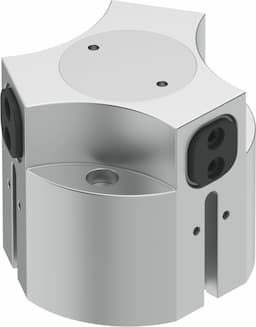

hgdd-40-a-g2
Product ID:801
Updated: 2026/4/3
Key Features
- 1Achieve high precision handling with 0.2mm replacement accuracy. 2、Operate reliably using standard 4-8 bar compressed air. 3、Install flexibly with multiple mounting options. 4、Withstand tough conditions with a robust stainless steel and aluminium build. 5、Integrate easily into existing systems to reduce setup time.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Stroke per gripper jaw | 6mm |
| Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.1deg |
| Max. gripper jaw backlash Sz | 0.05mm | Rotational symmetry | 0.2mm |
| Pneumatic gripper repetition accuracy | 0.03mm | Number of gripper jaws | 3 |
| Mounting position | Any | Mode of operation | Double-acting |
| Gripper function | 3-point | Gripping force backup | During closing |
| Structural design | Inclined plane Positively driven motion sequence | Position sensing | For proximity sensor |
| Symbol | 00991895 | Operating pressure | 4bar 8bar |
| Operating pressure for sealing air | 0bar 0.5bar | Max. operating frequency of pneumatic gripper | 4Hz |
| Min. opening time at 6 bar | 144ms | Min. closing time at 6 bar | 110ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP65 | Ambient temperature | 5°C 60°C |
| Mass moment of inertia | 5.01kgcm2 | Maximum force on gripper jaw Fz, static | 700N |
| Maximum torque on gripper jaw, Mx static | 25Nm | Maximum torque on gripper jaw, My static | 18Nm |
| Maximum torque on gripper jaw, Mz static | 20Nm | Relubrication interval for guidance elements | 5MioCyc |
| Max. mass per external gripper finger | 130g | Product weight | 775g |
| Type of mounting | Optionally: With through-hole and dowel pin With internal thread and dowel pin | Sealing air pneumatic connection | M3 |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover cap material | High-alloy stainless steel | Housing material | Wrought aluminum alloy, smooth-anodized |
| Gripper jaw material | Hardened steel | Manufacturer ID | 1163042 |
Specifications may be subject to change without notice
