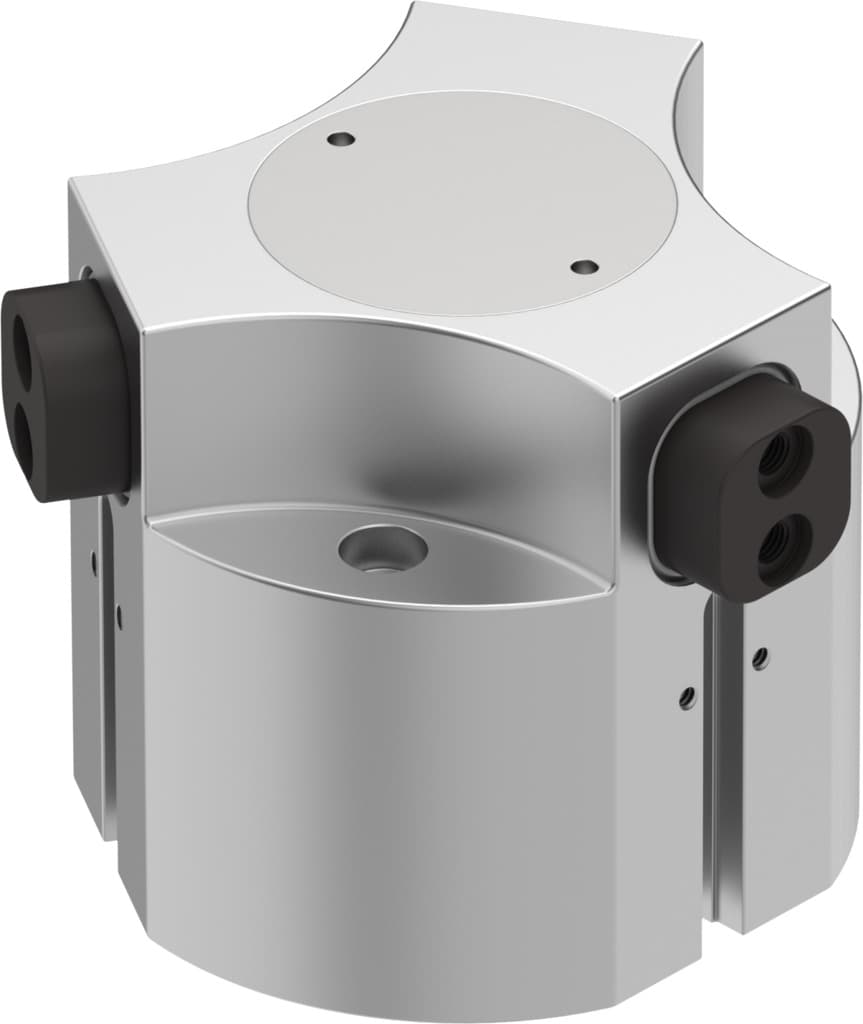

hgdd-50-a-g1
Product ID:803
Updated: 2026/7/4
Key Features
- 1Achieve 0.03 mm repeat accuracy for flawless handling.
- 2Mount flexibly via through-hole or female thread options.
- 3Operate efficiently with 4-8 bar double-acting pressure.
- 4Withstand harsh conditions with stainless steel and aluminum construction.
- 5Simplify positioning with an integrated proximity switch.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 50 | Stroke per gripper jaw | 8mm |
| Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.1deg |
| Max. gripper jaw backlash Sz | 0.05mm | Rotational symmetry | 0.2mm |
| Pneumatic gripper repetition accuracy | 0.03mm | Number of gripper jaws | 3 |
| Mounting position | Any | Mode of operation | Double-acting |
| Gripper function | 3-point | Gripping force backup | On opening |
| Structural design | Inclined plane Positively driven motion sequence | Position sensing | For proximity sensor |
| Symbol | 00995947 | Operating pressure | 4bar 8bar |
| Operating pressure for sealing air | 0bar 0.5bar | Max. operating frequency of pneumatic gripper | 4Hz |
| Min. opening time at 6 bar | 25ms | Min. closing time at 6 bar | 160ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP65 | Ambient temperature | 5°C 60°C |
| Mass moment of inertia | 15.07kgcm2 | Maximum force on gripper jaw Fz, static | 1300N |
| Maximum torque on gripper jaw, Mx static | 45Nm | Maximum torque on gripper jaw, My static | 30Nm |
| Maximum torque on gripper jaw, Mz static | 30Nm | Relubrication interval for guidance elements | 5MioCyc |
| Max. mass per external gripper finger | 276g | Product weight | 1495g |
| Type of mounting | Optionally: With through-hole and dowel pin With internal thread and dowel pin | Sealing air pneumatic connection | M5 |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover cap material | High-alloy stainless steel | Housing material | Wrought aluminum alloy, smooth-anodized |
| Gripper jaw material | Hardened steel | Manufacturer ID | 1163044 |
Specifications may be subject to change without notice
