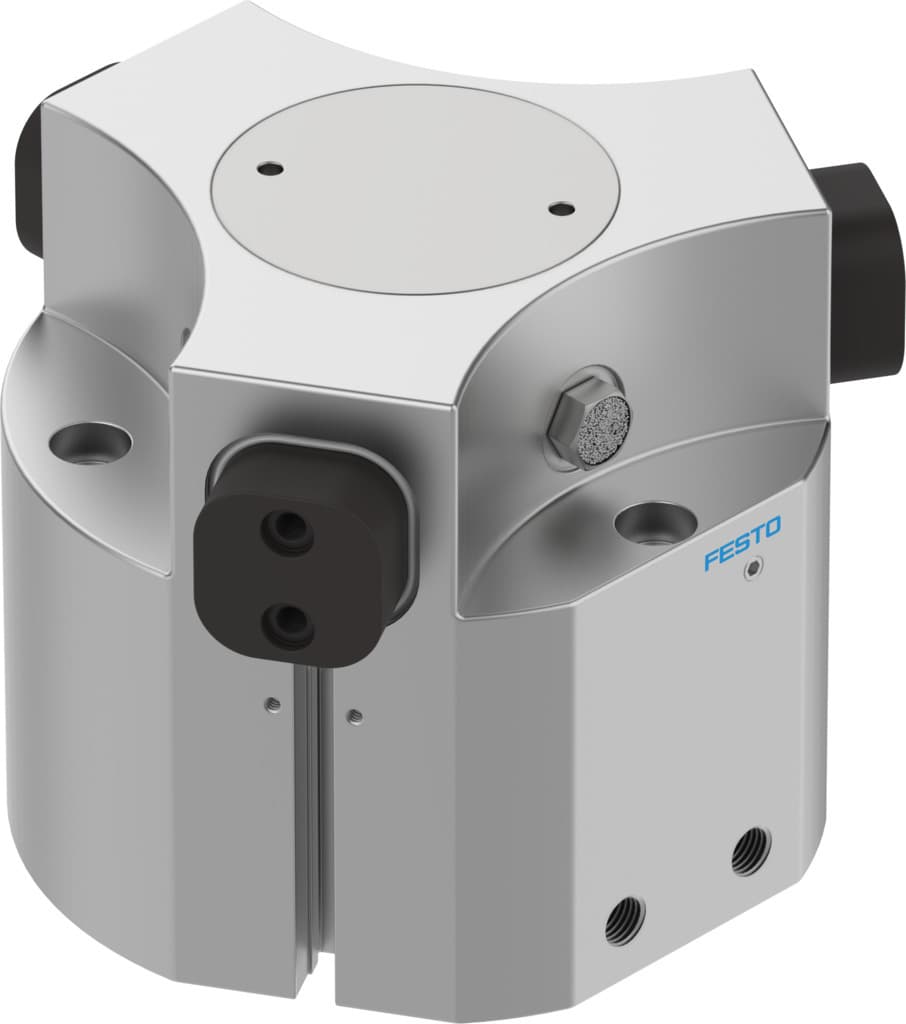

hgdd-80-a-g1
Product ID:809
Updated: 2026/4/3
Key Features
- 1Achieve ≤0.2 mm maximum replacement accuracy for precise handling. 2、Minimize jaw backlash to ≤0.05 mm for reliable operation. 3、Ensure precise positioning with ≤0.1 deg angular backlash. 4、Utilize a 12 mm stroke for versatile handling applications. 5、Access global availability and reliable Festo service support.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 80 | Stroke per gripper jaw | 12mm |
| Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.1deg |
| Max. gripper jaw backlash Sz | 0.05mm | Rotational symmetry | 0.2mm |
| Pneumatic gripper repetition accuracy | 0.05mm | Number of gripper jaws | 3 |
| Mounting position | Any | Mode of operation | Double-acting |
| Gripper function | 3-point | Gripping force backup | On opening |
| Structural design | Inclined plane Positively driven motion sequence | Position sensing | For proximity sensor |
| Symbol | 00995947 | Operating pressure | 4bar 8bar |
| Operating pressure for sealing air | 0bar 0.5bar | Max. operating frequency of pneumatic gripper | 4Hz |
| Min. opening time at 6 bar | 72ms | Min. closing time at 6 bar | 246ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP65 | Ambient temperature | 5°C 60°C |
| Mass moment of inertia | 109kgcm2 | Maximum force on gripper jaw Fz, static | 3600N |
| Maximum torque on gripper jaw, Mx static | 100Nm | Maximum torque on gripper jaw, My static | 65Nm |
| Maximum torque on gripper jaw, Mz static | 75Nm | Relubrication interval for guidance elements | 5MioCyc |
| Max. mass per external gripper finger | 790g | Product weight | 4788g |
| Type of mounting | Optionally: With through-hole and dowel pin With internal thread and dowel pin | Sealing air pneumatic connection | G1/8 |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover cap material | High-alloy stainless steel | Housing material | Wrought aluminum alloy, smooth-anodized |
| Gripper jaw material | Hardened steel | Manufacturer ID | 1163050 |
Specifications may be subject to change without notice
