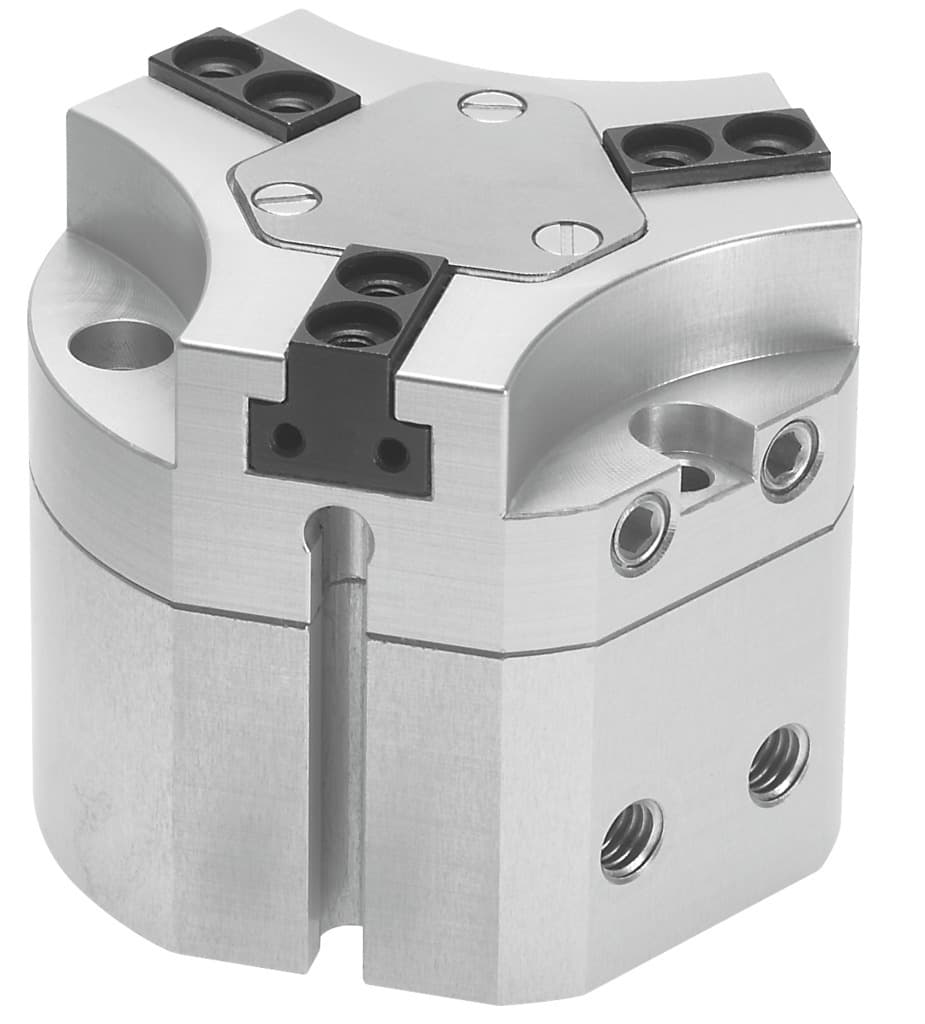

hgdt-35-a-g1
Product ID:10602
Updated: 2026/4/3
Key Features
- 1Achieve high-precision gripping with a 4 mm stroke per jaw. 2、Enable fast operation with 32 ms opening and 56 ms closing times. 3、Ensure durability with hardened steel jaws and aluminum housing. 4、Simplify installation with versatile through-hole or internal thread mounting. 5、Support high-speed automation with an operating frequency up to 4 Hz.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 35 | Stroke per gripper jaw | 4mm |
| Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.1deg |
| Max. gripper jaw backlash Sz | 0.05mm | Rotational symmetry | 0.2mm |
| Pneumatic gripper repetition accuracy | 0.03mm | Number of gripper jaws | 3 |
| Mounting position | Any | Mode of operation | Double-acting |
| Gripper function | 3-point | Gripping force backup | On opening |
| Structural design | Inclined plane Positively driven motion sequence | Position sensing | For proximity sensor |
| Symbol | 00995947 | Operating pressure | 4bar 8bar |
| Operating pressure for sealing air | 0bar 0.5bar | Max. operating frequency of pneumatic gripper | 4Hz |
| Min. opening time at 6 bar | 32ms | Min. closing time at 6 bar | 56ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | 5°C 60°C | Mass moment of inertia | 1.37kgcm2 |
| Maximum force on gripper jaw Fz, static | 400N | Maximum torque on gripper jaw, Mx static | 15Nm |
| Maximum torque on gripper jaw, My static | 10Nm | Maximum torque on gripper jaw, Mz static | 10Nm |
| Relubrication interval for guidance elements | 5MioCyc | Max. mass per external gripper finger | 30g |
| Product weight | 337g | Type of mounting | Optionally: With through-hole and dowel pin With internal thread and dowel pin |
| Sealing air pneumatic connection | M5 | Pneumatic connection | M5 |
| Cover cap material | High-alloy stainless steel | Housing material | Wrought aluminum alloy COMPCOTE-coated |
| Gripper jaw material | Hardened steel | Manufacturer ID | 540863 |
Specifications may be subject to change without notice
