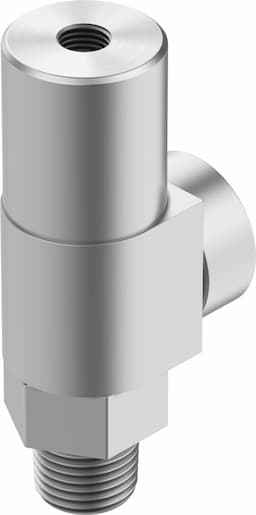

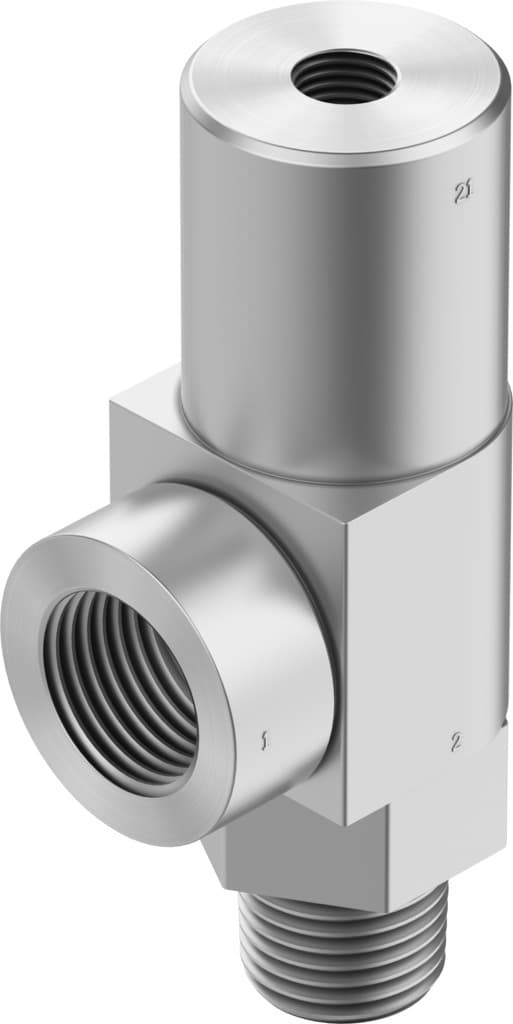

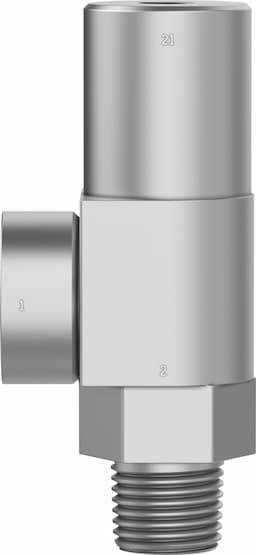

hgl-1/2-npt
Product ID:8236
Updated: 2026/4/3
Key Features
- 1Ensure reliable one-way air flow control with piloted non-return function. 2、Rotate the valve body 360° for flexible system configuration. 3、Use with medium-filtered, lubricated, or unlubricated compressed air. 4、Integrate easily via 1/2" NPT threaded connections. 5、Benefit from durable brass housing and Buna N seals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Unlockable non-return function | Pneumatic connection 1 | 1/2 NPT |
| Pneumatic connection 2 | 1/2 NPT | Type of mounting | Screw-in |
| Standard nominal flow rate | 0l/min 1600l/min | Operating pressure | 0.2bar 10bar |
| Pilot pressure MPa | 0.1MPa 1MPa | Pilot pressure | 1bar 10bar |
| Pilot pressure psi | 14.5psi 145psi | Ambient temperature | -20°C 80°C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Symbol | 00991456 |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -20°C 80°C | Note on materials | RoHS-compliant |
| Manufacturer ID | 34880 |
Specifications may be subject to change without notice
