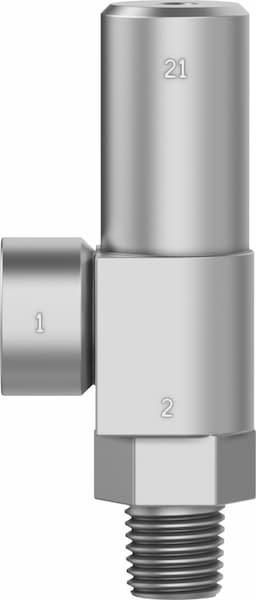

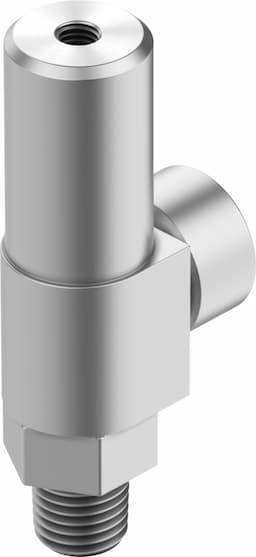

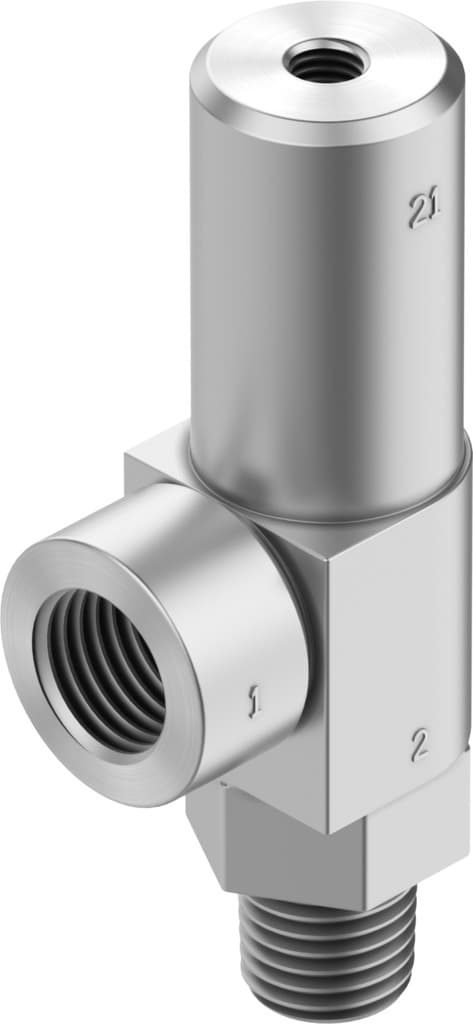

hgl-1/8-npt
Product ID:8233
Updated: 2026/7/4
Key Features
- 1Ensure reliable one-way air flow with piloted operation.
- 2Achieve 10 million cycles for extended service life.
- 3Install easily using 1/8" NPT threaded connections.
- 4Operate across a wide -20 to +80°C temperature range.
- 5Prevent backflow to maintain pneumatic system integrity.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Unlockable non-return function | Pneumatic connection 1 | 1/8 NPT |
| Pneumatic connection 2 | 1/8 NPT | Type of mounting | Screw-in |
| Standard nominal flow rate | 0l/min 260l/min | Operating pressure | 0.3bar 10bar |
| Pilot pressure MPa | 0.2MPa 1MPa | Pilot pressure | 2bar 10bar |
| Pilot pressure psi | 29psi 145psi | Ambient temperature | -20°C 80°C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Symbol | 00991456 |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -20°C 80°C | Note on materials | RoHS-compliant |
| Manufacturer ID | 34877 |
Specifications may be subject to change without notice
