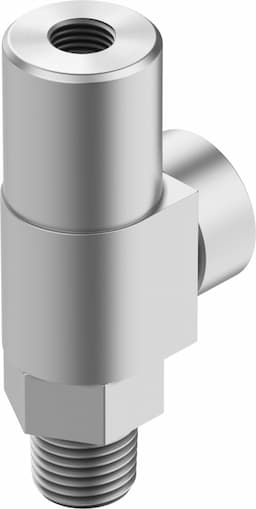

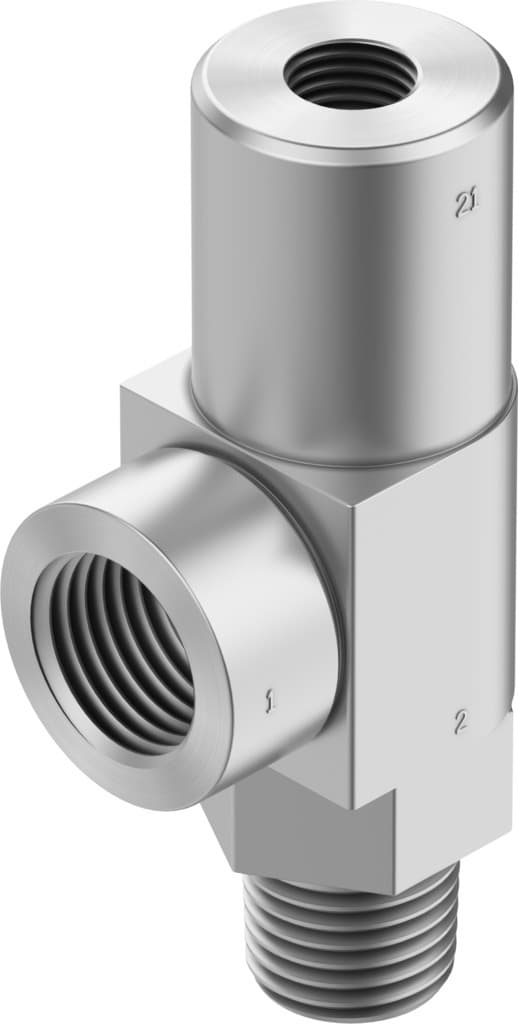

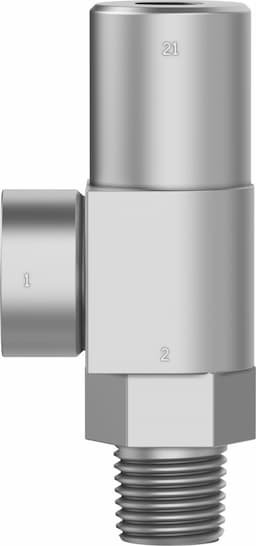

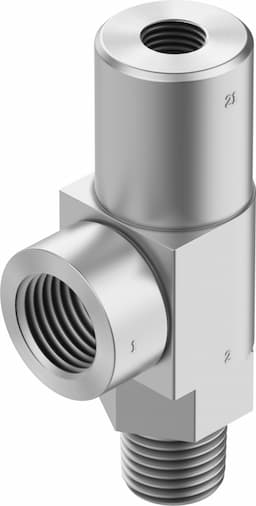

hgl-3/8-npt
Product ID:8235
Updated: 2026/4/3
Key Features
- 1Ensure precise one-way flow control with a piloted non-return function. 2、Integrate easily using the standard 3/8" NPT threaded connection. 3、Withstand demanding pressures from 7.5 to 150 psi reliably. 4、Achieve rapid response with 8 ms on and 17 ms off times. 5、Rely on durable brass and Buna N construction for longevity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Unlockable non-return function | Pneumatic connection 1 | 3/8 NPT |
| Pneumatic connection 2 | 3/8 NPT | Type of mounting | Screw-in |
| Standard nominal flow rate | 0l/min 900l/min | Operating pressure | 0.2bar 10bar |
| Pilot pressure MPa | 0.12MPa 1MPa | Pilot pressure | 1.2bar 10bar |
| Pilot pressure psi | 17.4psi 145psi | Ambient temperature | -20°C 80°C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Symbol | 00991456 |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -20°C 80°C | Note on materials | RoHS-compliant |
| Manufacturer ID | 34879 |
Specifications may be subject to change without notice
