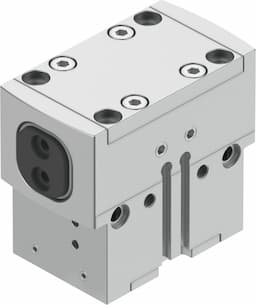

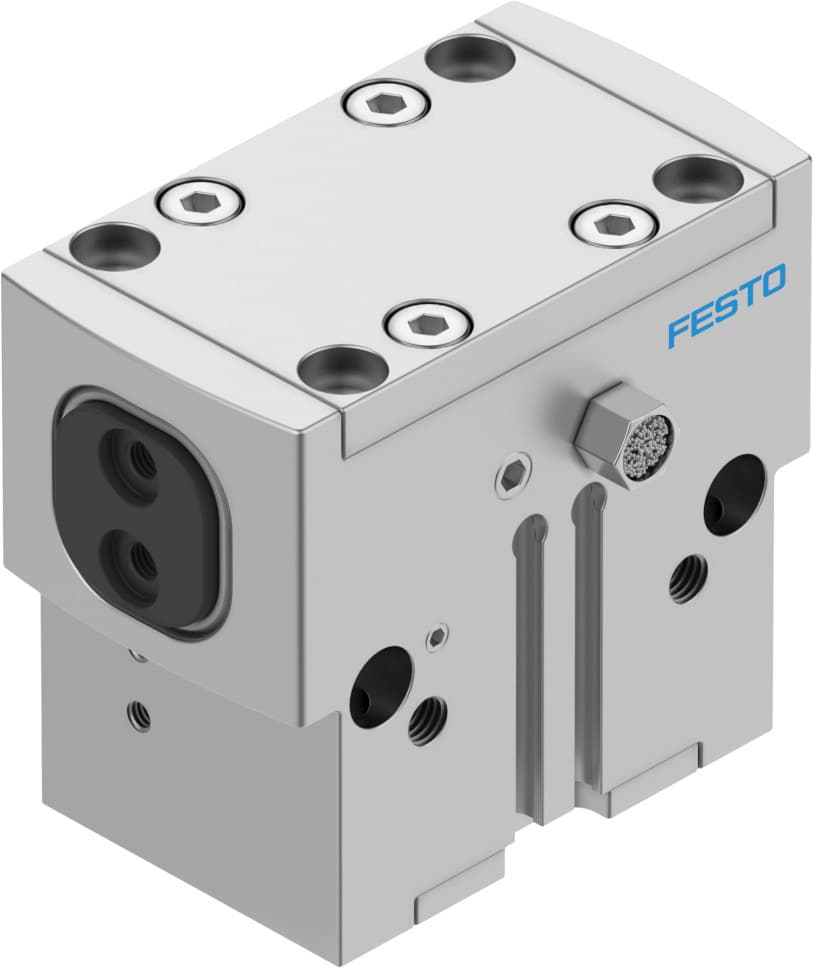

hgpd-25-a-g2
Product ID:740
Updated: 2026/7/4
Key Features
- 1Ensure precise 6 mm parallel gripping for accurate industrial handling.
- 2Construct durable units with hardened steel jaws and aluminum housing.
- 3Mount flexibly via internal thread, through-hole, or dowel pin options.
- 4Achieve high-speed operation with 28 ms closing time at 6 bar.
- 5Integrate easily into pneumatic systems using ISO 8573-1:2010 air.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 25 | Stroke per gripper jaw | 6mm |
| Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.1deg |
| Max. gripper jaw backlash Sz | 0.02mm | Rotational symmetry | 0.2mm |
| Pneumatic gripper repetition accuracy | 0.04mm | Number of gripper jaws | 2 |
| Actuator system | Pneumatic | Mounting position | Any |
| Mode of operation | Double-acting | Gripper function | Parallel |
| Gripping force backup | During closing | Structural design | Inclined plane Positively driven motion sequence |
| Position sensing | For proximity sensor | Symbol | 00991895 |
| Operating pressure | 4bar 8bar | Operating pressure for sealing air | 0bar 0.5bar |
| Max. operating frequency of pneumatic gripper | 3Hz | Min. opening time at 6 bar | 48ms |
| Min. closing time at 6 bar | 28ms | Max. mass per external gripper finger | 138g |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP65 | Ambient temperature | 5°C 60°C |
| Mass moment of inertia | 1.72kgcm2 | Maximum torque on gripper jaw, Mx static | 30Nm |
| Maximum torque on gripper jaw, My static | 25Nm | Maximum torque on gripper jaw, Mz static | 15Nm |
| Relubrication interval for guidance elements | 5MioCyc | Product weight | 361g |
| Type of mounting | Optionally: With internal thread and centering sleeve Via through-hole and centering sleeve With through-hole and dowel pin With internal thread and dowel pin | Sealing air pneumatic connection | M5 |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover cap material | High-alloy stainless steel | Housing material | Aluminum, anodized |
| Gripper jaw material | Hardened steel | Manufacturer ID | 1132944 |
Specifications may be subject to change without notice
