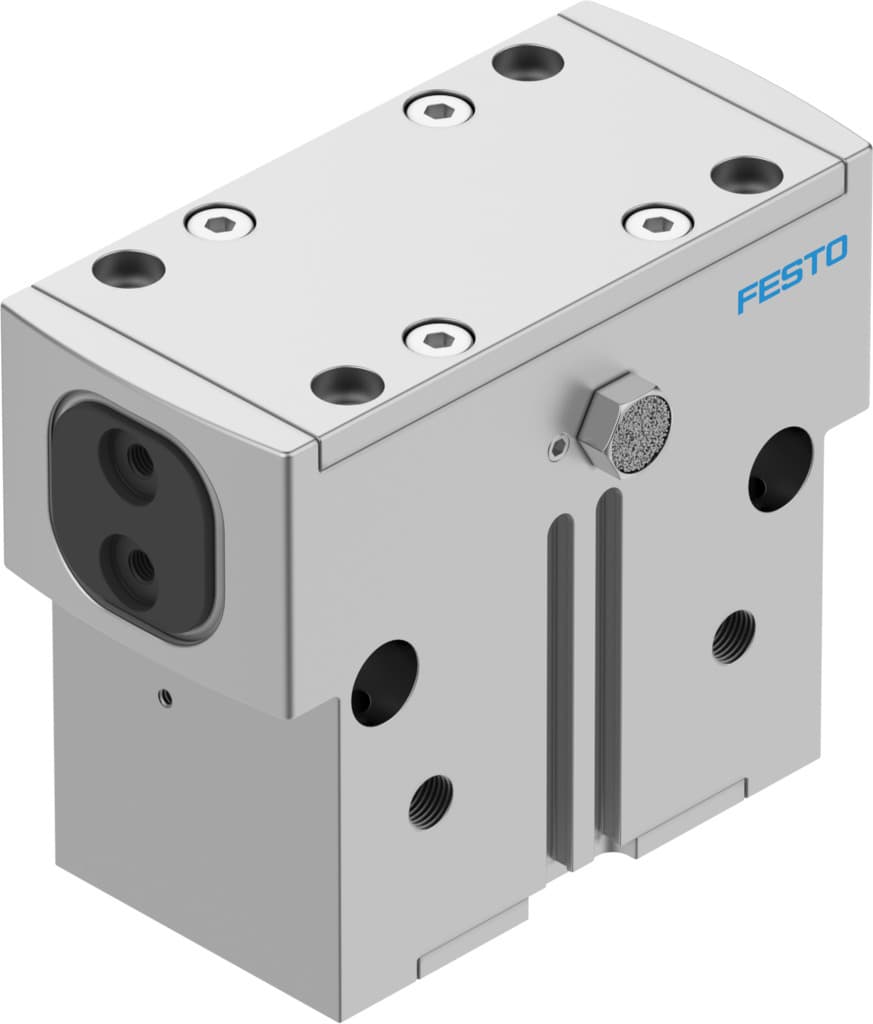

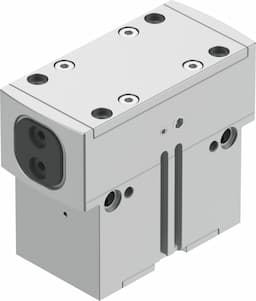

hgpd-50-a-g2
Product ID:749
Updated: 2026/4/3
Key Features
- 1Achieve 0.2 mm maximum replacement accuracy for precise handling. 2、Mount flexibly via female thread, through-hole, or dowel pin options. 3、Utilize hardened steel jaws and anodized aluminum for durability. 4、Operate at 2 Hz frequency with a 12 mm stroke for speed. 5、Detect position via sensor for reliable double-acting operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 50 | Stroke per gripper jaw | 12mm |
| Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.1deg |
| Max. gripper jaw backlash Sz | 0.02mm | Rotational symmetry | 0.2mm |
| Pneumatic gripper repetition accuracy | 0.05mm | Number of gripper jaws | 2 |
| Actuator system | Pneumatic | Mounting position | Any |
| Mode of operation | Double-acting | Gripper function | Parallel |
| Gripping force backup | During closing | Structural design | Inclined plane Positively driven motion sequence |
| Position sensing | For proximity sensor | Symbol | 00991895 |
| Operating pressure | 4bar 8bar | Operating pressure for sealing air | 0bar 0.5bar |
| Max. operating frequency of pneumatic gripper | 2Hz | Min. opening time at 6 bar | 170ms |
| Min. closing time at 6 bar | 87ms | Max. mass per external gripper finger | 813g |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP65 | Ambient temperature | 5°C 60°C |
| Mass moment of inertia | 36.74kgcm2 | Maximum torque on gripper jaw, Mx static | 90Nm |
| Maximum torque on gripper jaw, My static | 60Nm | Maximum torque on gripper jaw, Mz static | 50Nm |
| Relubrication interval for guidance elements | 5MioCyc | Product weight | 2150g |
| Type of mounting | Optionally: With internal thread and centering sleeve Via through-hole and centering sleeve With through-hole and dowel pin With internal thread and dowel pin | Sealing air pneumatic connection | M5 |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover cap material | High-alloy stainless steel | Housing material | Aluminum, anodized |
| Gripper jaw material | Hardened steel | Manufacturer ID | 1132953 |
Specifications may be subject to change without notice
