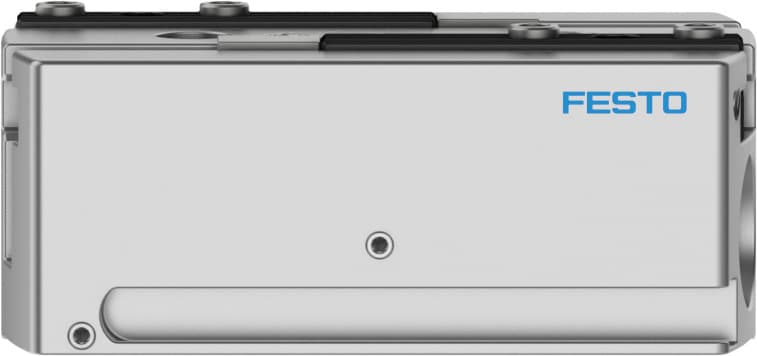

hgpl-14-20-a-b
Product ID:8119
Updated: 2026/7/4
Key Features
- 1Achieve high precision with less than 0.2 mm replacement accuracy.
- 2Ensure robust performance via double piston and toothed rack construction.
- 3Enable versatile integration with arbitrary installation positions.
- 4Withstand moderate corrosion stress with Class KBK 2 materials.
- 5Deliver efficient gripping forces up to 158 N for reliable handling.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 14 | Stroke per gripper jaw | 20mm |
| Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.2deg |
| Max. gripper jaw backlash Sz | 0.05mm | Rotational symmetry | 0.2mm |
| Pneumatic gripper repetition accuracy | 0.03mm | Number of gripper jaws | 2 |
| Actuator system | Pneumatic | Mounting position | Any |
| Mode of operation | Double-acting | Gripper function | Parallel |
| Gripping force backup | Without | Structural design | Twin piston Guide Piston gate valve T-shape Gear rack/pinion |
| Position sensing | For proximity sensor | Symbol | 00991894 |
| Operating pressure | 3bar 8bar | Max. operating frequency of pneumatic gripper | 1Hz |
| Min. opening time at 6 bar | 120ms | Min. closing time at 6 bar | 110ms |
| Max. mass per external gripper finger | 80g | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 5°C 60°C |
| Gripping force per gripper jaw at 6 bar, opening | 63N | Gripping force per gripper jaw at 6 bar, closing | 79N |
| Mass moment of inertia | 1.4kgcm2 | Maximum force on gripper jaw Fz, static | 500N |
| Maximum torque on gripper jaw, Mx static | 35Nm | Maximum torque on gripper jaw, My static | 35Nm |
| Maximum torque on gripper jaw, Mz static | 35Nm | Relubrication interval for guidance elements | 5MioCyc |
| Product weight | 305g | Type of mounting | With internal thread and centering sleeve Via through-hole and centering sleeve |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Housing material | Wrought aluminum alloy, smooth-anodized | Gripper jaw material | Hardened steel |
| Manufacturer ID | 3361479 |
