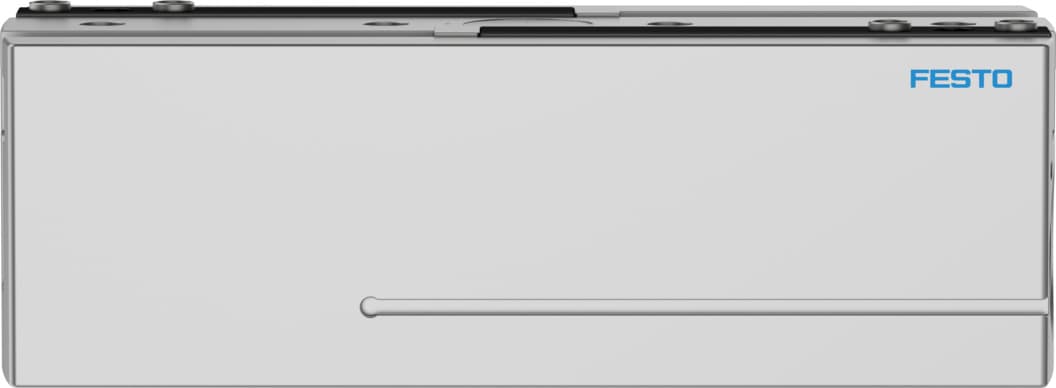

hgpl-63-150-a-b
Product ID:8134
Updated: 2026/4/3
Key Features
- 1Achieve <0.03 mm repetition accuracy for precise gripping. 2、Mount in any position for flexible automation setups. 3、Utilize hardened steel jaws and aluminum housing for durability. 4、Operate at <1 Hz frequency for efficient task handling. 5、Integrate with ISO 8573-1:2010 compressed air systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 63 | Stroke per gripper jaw | 150mm |
| Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.2deg |
| Max. gripper jaw backlash Sz | 0.05mm | Rotational symmetry | 0.2mm |
| Pneumatic gripper repetition accuracy | 0.03mm | Number of gripper jaws | 2 |
| Actuator system | Pneumatic | Mounting position | Any |
| Mode of operation | Double-acting | Gripper function | Parallel |
| Gripping force backup | Without | Structural design | Twin piston Guide Piston gate valve T-shape Gear rack/pinion |
| Position sensing | For proximity sensor | Symbol | 00991894 |
| Operating pressure | 3bar 8bar | Max. operating frequency of pneumatic gripper | 1Hz |
| Min. opening time at 6 bar | 1020ms | Min. closing time at 6 bar | 850ms |
| Max. mass per external gripper finger | 940g | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 5°C 60°C |
| Gripping force per gripper jaw at 6 bar, opening | 1233N | Gripping force per gripper jaw at 6 bar, closing | 1371N |
| Mass moment of inertia | 2247.54kgcm2 | Maximum force on gripper jaw Fz, static | 9000N |
| Maximum torque on gripper jaw, Mx static | 300Nm | Maximum torque on gripper jaw, My static | 200Nm |
| Maximum torque on gripper jaw, Mz static | 250Nm | Relubrication interval for guidance elements | 5MioCyc |
| Product weight | 18100g | Type of mounting | With internal thread and centering sleeve Via through-hole and centering sleeve |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Housing material | Wrought aluminum alloy, smooth-anodized | Gripper jaw material | Hardened steel |
| Manufacturer ID | 3361494 |
Specifications may be subject to change without notice
