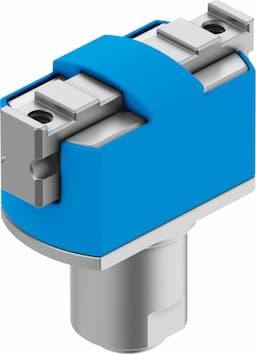

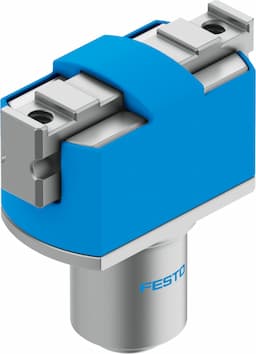

hgpm-08-eo-g8
Product ID:7805
Updated: 2026/7/4
Key Features
- 1Achieve precise handling with a 2 mm stroke and 0.2 mm replacement accuracy.
- 2Minimize operational errors with a maximum 0.5-degree angular jaw backlash.
- 3Withstand demanding conditions using high-alloy steel jaws and aluminum housing.
- 4Integrate easily into systems via flange mounting with through-holes and screws.
- 5Boost productivity with fast 4.9 ms opening and 2.3 ms closing times.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 8 | Stroke per gripper jaw | 2mm |
| Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.5deg |
| Max. gripper jaw backlash Sz | 0.03mm | Rotational symmetry | 0.15mm |
| Pneumatic gripper repetition accuracy | 0.05mm | Number of gripper jaws | 2 |
| Actuator system | Pneumatic | Mode of operation | Single-acting Open |
| Gripper function | Parallel | Gripping force backup | Without |
| Structural design | Inclined plane | Position sensing | None |
| Symbol | 00991897 | Operating pressure | 4bar 8bar |
| Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 4.9ms |
| Min. closing time at 6 bar | 2.3ms | Max. mass per external gripper finger | 5g |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 5°C 60°C | Gripping force per gripper jaw at 6 bar, opening | 16N |
| Gripping force per gripper jaw at 6 bar, closing | 8N | Mass moment of inertia | 0.00573kgcm2 |
| Maximum force on gripper jaw Fz, static | 10N | Maximum torque on gripper jaw, Mx static | 0.1Nm |
| Maximum torque on gripper jaw, My static | 0.1Nm | Maximum torque on gripper jaw, Mz static | 0.1Nm |
| Product weight | 11g | Type of mounting | Clamped |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Cover cap material | POM | Housing material | Wrought aluminum alloy, anodized |
| Gripper jaw material | High-alloy steel | Manufacturer ID | 197560 |
Specifications may be subject to change without notice
