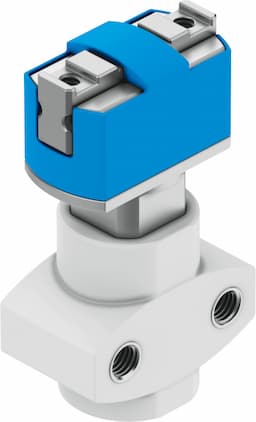

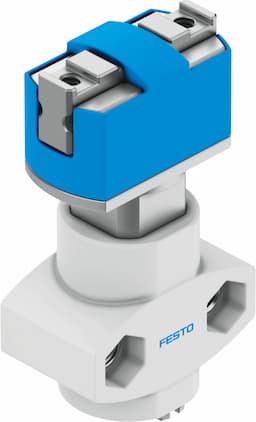

hgpm-08-ez-g6
Product ID:7807
Updated: 2026/7/18
Key Features
- 1Ensure ≤0.05 mm repetition accuracy for precise micro-assembly tasks.
- 2Deliver 16 N gripping force at 6 bar for compact, high-force applications.
- 3Operate at up to 4 Hz frequency for fast and efficient handling cycles.
- 4Construct with high-alloy steel jaws and aluminum housing for durability.
- 5Mount flexibly via through-hole with M3 pneumatic connection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 8 | Stroke per gripper jaw | 2mm |
| Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.5deg |
| Max. gripper jaw backlash Sz | 0.03mm | Pneumatic gripper repetition accuracy | 0.05mm |
| Number of gripper jaws | 2 | Actuator system | Pneumatic |
| Mode of operation | Single-acting Closed | Gripper function | Parallel |
| Gripping force backup | Without | Structural design | Inclined plane |
| Position sensing | None | Symbol | 00991898 |
| Operating pressure | 4bar 8bar | Max. operating frequency of pneumatic gripper | 4Hz |
| Min. opening time at 6 bar | 1.9ms | Min. closing time at 6 bar | 4.1ms |
| Max. mass per external gripper finger | 5g | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 5°C 60°C |
| Stroke compensation spring force | 4N 6N | Gripping force per gripper jaw at 6 bar, closing | 16N |
| Gripping force per gripper jaw at 6 bar, opening | 8N | Mass moment of inertia | 0.00922kgcm2 |
| Maximum force on gripper jaw Fz, static | 10N | Maximum torque on gripper jaw, Mx static | 0.1Nm |
| Maximum torque on gripper jaw, My static | 0.1Nm | Maximum torque on gripper jaw, Mz static | 0.1Nm |
| Product weight | 19g | Type of mounting | With through-hole |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Cover cap material | POM | Housing material | Wrought aluminum alloy, anodized |
| Gripper jaw material | High-alloy steel | Manufacturer ID | 197562 |
Specifications may be subject to change without notice
