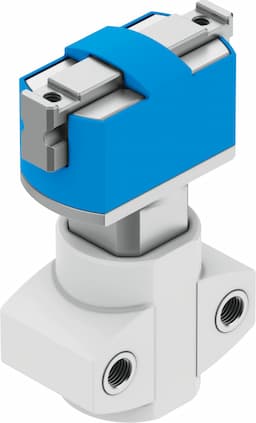

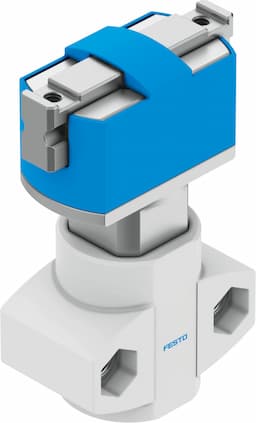

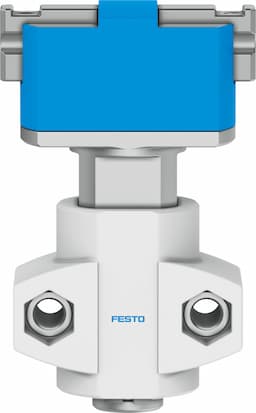

hgpm-12-eo-g6
Product ID:7810
Updated: 2026/4/3
Key Features
- 1Achieve precise handling with a 3 mm stroke per gripper jaw. 2、Ensure reliable performance with 0.2 mm max replacement accuracy. 3、Integrate easily into pneumatic systems for single-acting open operation. 4、Benefit from durability with high-alloy steel jaws and aluminum housing. 5、Operate efficiently at 4-8 bar pressure with a 4 Hz max frequency.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Stroke per gripper jaw | 3mm |
| Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.5deg |
| Max. gripper jaw backlash Sz | 0.03mm | Pneumatic gripper repetition accuracy | 0.05mm |
| Number of gripper jaws | 2 | Actuator system | Pneumatic |
| Mode of operation | Single-acting Open | Gripper function | Parallel |
| Gripping force backup | Without | Structural design | Inclined plane |
| Position sensing | None | Symbol | 00991897 |
| Operating pressure | 4bar 8bar | Max. operating frequency of pneumatic gripper | 4Hz |
| Min. opening time at 6 bar | 11ms | Min. closing time at 6 bar | 3.7ms |
| Max. mass per external gripper finger | 15g | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 5°C 60°C |
| Stroke compensation spring force | 10N 23N | Gripping force per gripper jaw at 6 bar, opening | 27N |
| Gripping force per gripper jaw at 6 bar, closing | 13.5N | Mass moment of inertia | 0.06674kgcm2 |
| Maximum force on gripper jaw Fz, static | 30N | Maximum torque on gripper jaw, Mx static | 0.5Nm |
| Maximum torque on gripper jaw, My static | 0.5Nm | Maximum torque on gripper jaw, Mz static | 0.5Nm |
| Product weight | 62g | Type of mounting | With through-hole |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Cover cap material | POM | Housing material | Wrought aluminum alloy, anodized |
| Gripper jaw material | High-alloy steel | Manufacturer ID | 197565 |
Specifications may be subject to change without notice
