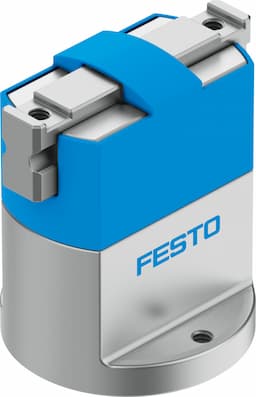

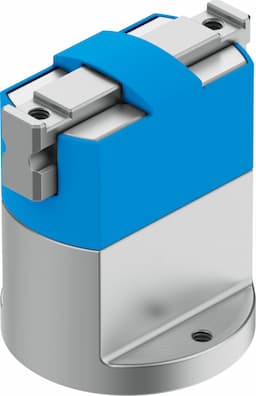

hgpm-12-eo-g9

Product ID:7812

Updated: 2026/4/3

Key Features

1Achieve high precision with 0.05 mm gripping repetition accuracy. 2、Operate versatilely within a 4 to 8 bar pressure range. 3、Enable fast handling with 11 ms opening and 3.7 ms closing times. 4、Ensure durability with high-alloy steel jaws and anodized housing. 5、Simplify integration using M3 pneumatic ports and internal threads.

Detailed engineering parameters

Parameter	Value	Parameter	Value
Size	12	Stroke per gripper jaw	3mm
Max. interchangeability	0.2mm	Max. gripper jaw angular play ax, ay	0.5deg
Max. gripper jaw backlash Sz	0.03mm	Rotational symmetry	0.15mm
Pneumatic gripper repetition accuracy	0.05mm	Number of gripper jaws	2
Actuator system	Pneumatic	Mode of operation	Single-acting Open
Gripper function	Parallel	Gripping force backup	Without
Structural design	Inclined plane	Position sensing	None
Symbol	00991897	Operating pressure	4bar 8bar
Max. operating frequency of pneumatic gripper	4Hz	Min. opening time at 6 bar	11ms
Min. closing time at 6 bar	3.7ms	Max. mass per external gripper finger	15g
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Ambient temperature	5°C 60°C	Gripping force per gripper jaw at 6 bar, opening	27N
Gripping force per gripper jaw at 6 bar, closing	13.5N	Mass moment of inertia	0.07939kgcm2
Maximum force on gripper jaw Fz, static	30N	Maximum torque on gripper jaw, Mx static	0.5Nm
Maximum torque on gripper jaw, My static	0.5Nm	Maximum torque on gripper jaw, Mz static	0.5Nm
Product weight	62g	Type of mounting	With internal thread
Pneumatic connection	M3	Note on materials	RoHS-compliant
Cover cap material	POM	Housing material	Wrought aluminum alloy, anodized
Gripper jaw material	High-alloy steel	Manufacturer ID	197567

Specifications may be subject to change without notice
