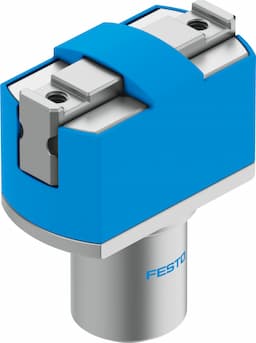

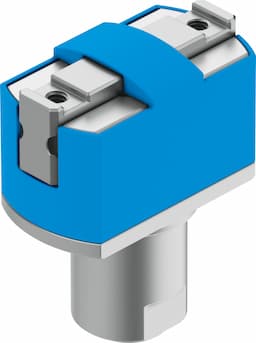

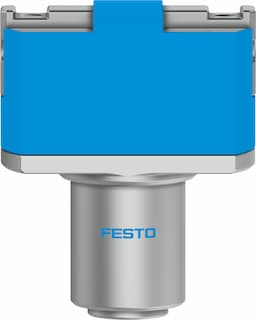

hgpm-12-ez-g8
Product ID:7814
Updated: 2026/7/4
Key Features
- 1Achieve ≤0.05 mm repeat accuracy for precise handling.
- 2Operate within a 4-8 bar pressure range for versatility.
- 3Utilize high-alloy steel jaws for durability in harsh environments.
- 4Benefit from a 3.7 ms closing time for high-speed processes.
- 5Integrate easily with Festo components using clamped mounting.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Stroke per gripper jaw | 3mm |
| Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.5deg |
| Max. gripper jaw backlash Sz | 0.03mm | Rotational symmetry | 0.15mm |
| Pneumatic gripper repetition accuracy | 0.05mm | Number of gripper jaws | 2 |
| Actuator system | Pneumatic | Mode of operation | Single-acting Closed |
| Gripper function | Parallel | Gripping force backup | Without |
| Structural design | Inclined plane | Position sensing | None |
| Symbol | 00991898 | Operating pressure | 4bar 8bar |
| Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 3ms |
| Min. closing time at 6 bar | 8.3ms | Max. mass per external gripper finger | 15g |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 5°C 60°C | Gripping force per gripper jaw at 6 bar, closing | 35N |
| Gripping force per gripper jaw at 6 bar, opening | 17.5N | Mass moment of inertia | 0.04252kgcm2 |
| Maximum force on gripper jaw Fz, static | 30N | Maximum torque on gripper jaw, Mx static | 0.5Nm |
| Maximum torque on gripper jaw, My static | 0.5Nm | Maximum torque on gripper jaw, Mz static | 0.5Nm |
| Product weight | 41g | Type of mounting | Clamped |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Cover cap material | POM | Housing material | Wrought aluminum alloy, anodized |
| Gripper jaw material | High-alloy steel | Manufacturer ID | 197569 |
Specifications may be subject to change without notice
