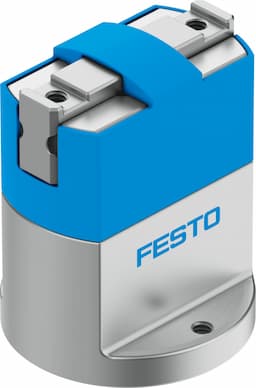

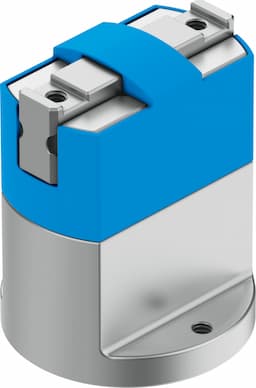

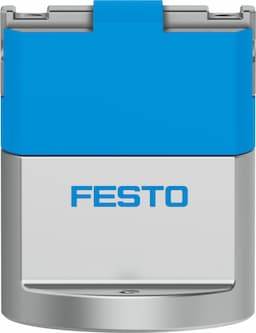

hgpm-12-ez-g9
Product ID:7815
Updated: 2026/4/3
Key Features
- 1Deliver 3 mm stroke per jaw for precise handling. 2、Ensure 0.2 mm interchangeability and 0.05 mm repeat accuracy. 3、Operate within a 4 to 8 bar pressure range for flexibility. 4、Utilize single-acting closed function for diverse tasks. 5、Feature high-alloy steel jaws for durable, corrosion-resistant performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Stroke per gripper jaw | 3mm |
| Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.5deg |
| Max. gripper jaw backlash Sz | 0.03mm | Pneumatic gripper repetition accuracy | 0.05mm |
| Number of gripper jaws | 2 | Actuator system | Pneumatic |
| Mode of operation | Single-acting Closed | Gripper function | Parallel |
| Gripping force backup | Without | Structural design | Inclined plane |
| Position sensing | None | Symbol | 00991898 |
| Operating pressure | 4bar 8bar | Max. operating frequency of pneumatic gripper | 4Hz |
| Min. opening time at 6 bar | 3ms | Min. closing time at 6 bar | 8.3ms |
| Max. mass per external gripper finger | 15g | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 5°C 60°C |
| Gripping force per gripper jaw at 6 bar, closing | 35N | Gripping force per gripper jaw at 6 bar, opening | 17.5N |
| Mass moment of inertia | 0.07939kgcm2 | Maximum force on gripper jaw Fz, static | 30N |
| Maximum torque on gripper jaw, Mx static | 0.5Nm | Maximum torque on gripper jaw, My static | 0.5Nm |
| Maximum torque on gripper jaw, Mz static | 0.5Nm | Product weight | 62g |
| Type of mounting | With internal thread | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Cover cap material | POM |
| Housing material | Wrought aluminum alloy, anodized | Gripper jaw material | High-alloy steel |
| Manufacturer ID | 197570 |
Specifications may be subject to change without notice
