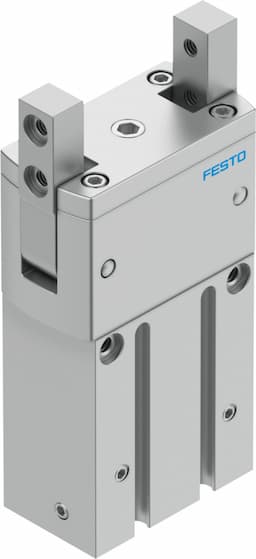

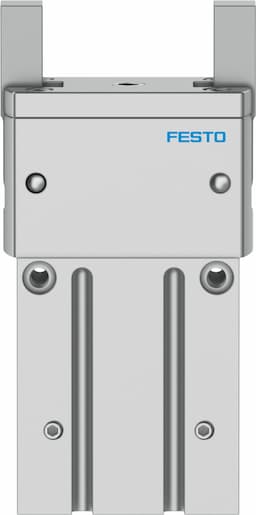

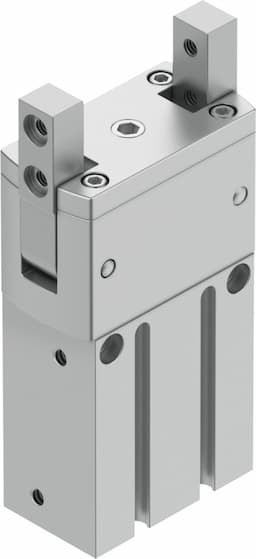

hgrt-16-a-g2
Product ID:13099
Updated: 2026/4/3
Key Features
- 1Achieve high precision with 0.2 mm max replacement accuracy. 2、Operate efficiently via double-acting pneumatic design. 3、Ensure durability with hardened steel jaw construction. 4、Work across a wide 4 to 8 bar pressure range. 5、Detect position precisely using integrated proximity sensors.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 16 | Max. interchangeability | 0.2mm |
| Max. gripper jaw angular play ax, ay | 0.1deg | Max. opening angle | 180deg |
| Rotational symmetry | 0.2mm | Pneumatic gripper repetition accuracy | 0.02mm |
| Number of gripper jaws | 2 | Mounting position | Any |
| Mode of operation | Double-acting | Gripper function | Radial |
| Gripping force backup | During closing | Structural design | Positively driven motion sequence |
| Position sensing | For proximity sensor For inductive proximity sensors | Symbol | 00991895 |
| Operating pressure | 4bar 8bar | Max. operating frequency of pneumatic gripper | 3Hz |
| Min. opening time at 6 bar | 233ms | Min. closing time at 6 bar | 185ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | 5°C 60°C | Mass moment of inertia | 0.21kgcm2 |
| Maximum force on gripper jaw Fz, static | 50N | Maximum torque on gripper jaw, My static | 3.9Nm |
| Maximum torque on gripper jaw, Mz static | 0.3Nm | Relubrication interval for guidance elements | 10MioCyc |
| Product weight | 150g | Type of mounting | With internal thread and centering sleeve |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Housing material | Wrought aluminum alloy, smooth-anodized | Gripper jaw material | Hardened steel |
| Manufacturer ID | 563905 |
Specifications may be subject to change without notice
