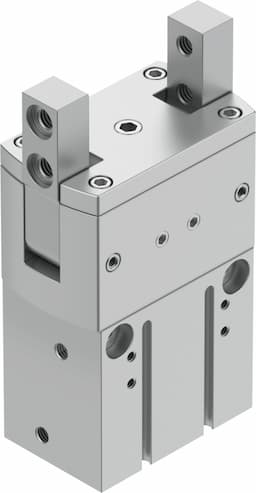

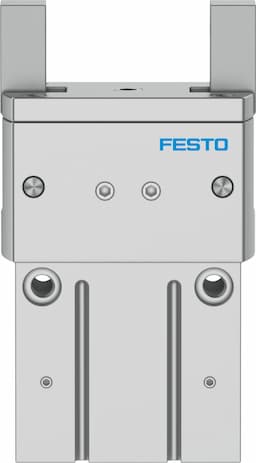

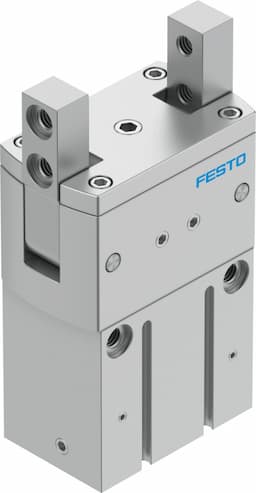

hgrt-25-a
Product ID:13102
Updated: 2026/7/4
Key Features
- 1Achieve high precision with 0.2 mm replacement accuracy and 0.1° angular play.
- 2Ensure robust operation using hardened steel jaws and aluminium housing.
- 3Enable versatile double-acting mode with position detection.
- 4Operate reliably across 3-8 bar pressure and 5-60°C temperature.
- 5Resist corrosion meeting CRC 1 class for durability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 25 | Max. interchangeability | 0.2mm |
| Max. gripper jaw angular play ax, ay | 0.1deg | Max. opening angle | 180deg |
| Rotational symmetry | 0.2mm | Pneumatic gripper repetition accuracy | 0.02mm |
| Number of gripper jaws | 2 | Mounting position | Any |
| Mode of operation | Double-acting | Gripper function | Radial |
| Structural design | Positively driven motion sequence | Position sensing | For proximity sensor For inductive proximity sensors |
| Symbol | 00991894 | Operating pressure | 3bar 8bar |
| Max. operating frequency of pneumatic gripper | 3Hz | Min. opening time at 6 bar | 309ms |
| Min. closing time at 6 bar | 343ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 5°C 60°C |
| Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening | 1348Ncm | Total gripping torque at 6 bar, closing | 1208Ncm |
| Mass moment of inertia | 2.1kgcm2 | Maximum force on gripper jaw Fz, static | 180N |
| Maximum torque on gripper jaw, My static | 10Nm | Maximum torque on gripper jaw, Mz static | 1Nm |
| Relubrication interval for guidance elements | 10MioCyc | Product weight | 540g |
| Type of mounting | With internal thread and centering sleeve | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Housing material | Wrought aluminum alloy, smooth-anodized |
| Gripper jaw material | Hardened steel | Manufacturer ID | 563908 |
Specifications may be subject to change without notice
