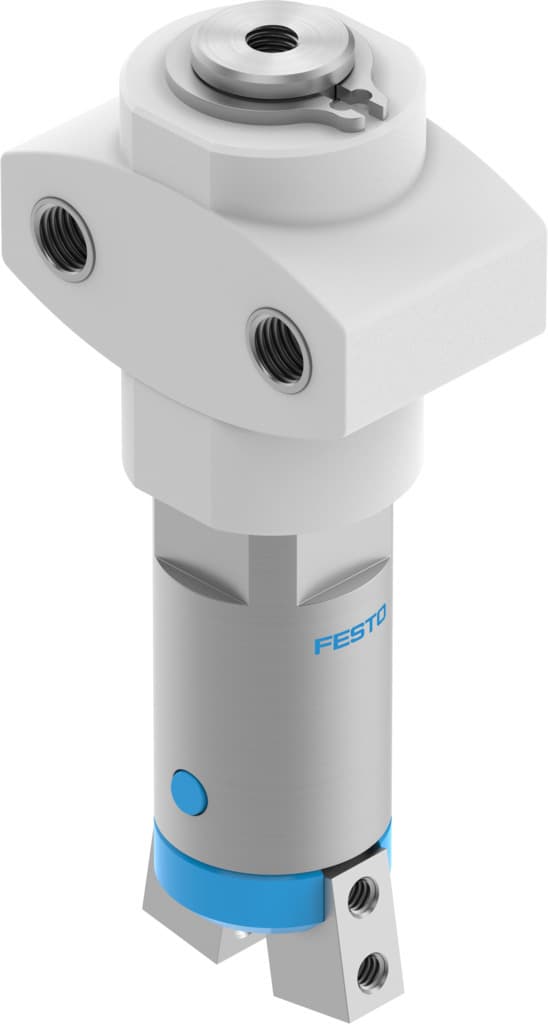

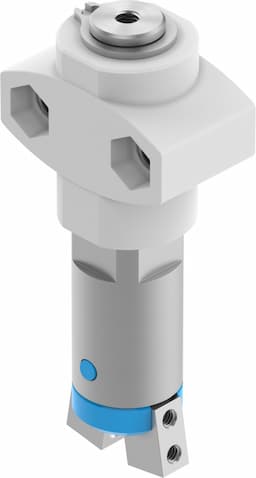

hgwm-08-eo-g6

Product ID:5737

Updated: 2026/4/3

Key Features

1Achieve precise angular jaw operation for reliable micro-gripping. 2、Deliver a robust 22 N grip force for secure part holding. 3、Utilize a compact 8 mm cylinder bore with two gripper fingers. 4、Control the gripping range with a maximum 17-degree opening angle. 5、Integrate this single-acting gripper into versatile pneumatic automation systems.

Detailed engineering parameters

Parameter	Value	Parameter	Value
Size	8	Max. gripper jaw angular play ax, ay	0.5deg
Max. gripper jaw backlash Sz	0.03mm	Max. opening angle	17deg
Pneumatic gripper repetition accuracy	0.02mm	Number of gripper jaws	2
Actuator system	Pneumatic	Mode of operation	Single-acting Open
Gripper function	Angle	Gripping force backup	Without
Structural design	Inclined plane	Position sensing	None
Symbol	00991897	Operating pressure	2bar 8bar
Max. operating frequency of pneumatic gripper	4Hz	Min. opening time at 6 bar	2.7ms
Min. closing time at 6 bar	1.2ms	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Ambient temperature	5°C 60°C	Stroke compensation spring force	4N 6N
Spring return torque	0.005Nm	Total gripping torque at 6 bar, closing	22Ncm
Mass moment of inertia	70.5kgcm2	Mass moment of inertia per external gripper finger	250kgcm2
Maximum force on gripper jaw Fz, static	7N	Maximum torque on gripper jaw, Mx static	0.2Nm
Maximum torque on gripper jaw, My static	0.2Nm	Maximum torque on gripper jaw, Mz static	0.2Nm
Max. mass per external gripper finger	400g	Product weight	23g
Type of mounting	With internal thread	Pneumatic connection	M3
Note on materials	RoHS-compliant	Cover cap material	POM
Housing material	High-alloy stainless steel	Gripper jaw material	High-alloy steel
Manufacturer ID	185693

Specifications may be subject to change without notice
