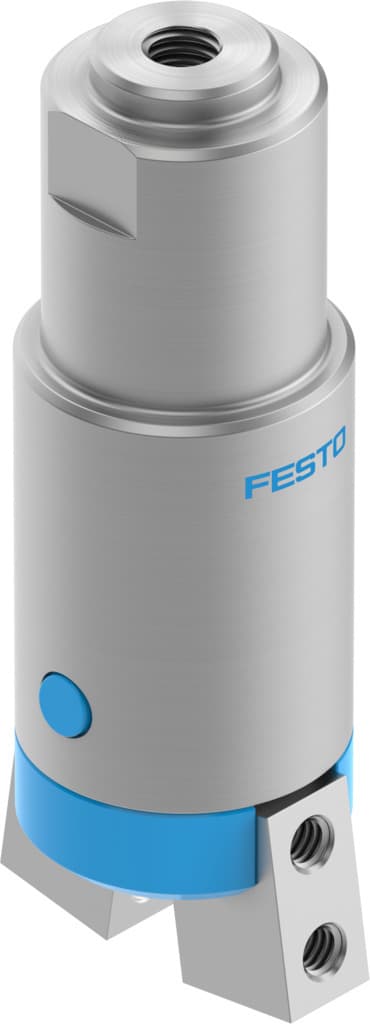

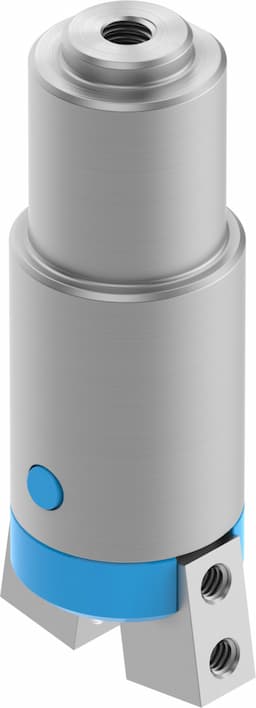

hgwm-08-eo-g8
Product ID:5739
Updated: 2026/4/3
Key Features
- 1Ensure ≤0.02 mm repeat accuracy and 0.5° max jaw backlash for precision. 2、Operate in single-acting mode for versatile external and internal gripping. 3、Achieve fast cycles with 2.7 ms opening and 1.2 ms closing times at 6 bar. 4、Utilize a wedge drive and high-alloy steel construction for durability. 5、Integrate easily with ISO 8573-1:2010 air and RoHS-compliant materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 8 | Max. gripper jaw angular play ax, ay | 0.5deg |
| Max. gripper jaw backlash Sz | 0.03mm | Max. opening angle | 17deg |
| Pneumatic gripper repetition accuracy | 0.02mm | Number of gripper jaws | 2 |
| Actuator system | Pneumatic | Mode of operation | Single-acting Open |
| Gripper function | Angle | Gripping force backup | Without |
| Structural design | Inclined plane | Position sensing | None |
| Symbol | 00991897 | Operating pressure | 2bar 8bar |
| Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 2.7ms |
| Min. closing time at 6 bar | 1.2ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 5°C 60°C | Spring return torque | 0.005Nm |
| Total gripping torque at 6 bar, closing | 22Ncm | Mass moment of inertia | 25.2kgcm2 |
| Mass moment of inertia per external gripper finger | 250kgcm2 | Maximum force on gripper jaw Fz, static | 7N |
| Maximum torque on gripper jaw, Mx static | 0.2Nm | Maximum torque on gripper jaw, My static | 0.2Nm |
| Maximum torque on gripper jaw, Mz static | 0.2Nm | Max. mass per external gripper finger | 400g |
| Product weight | 13g | Type of mounting | Clamped |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Cover cap material | POM | Housing material | High-alloy stainless steel |
| Gripper jaw material | High-alloy steel | Manufacturer ID | 185695 |
Specifications may be subject to change without notice
