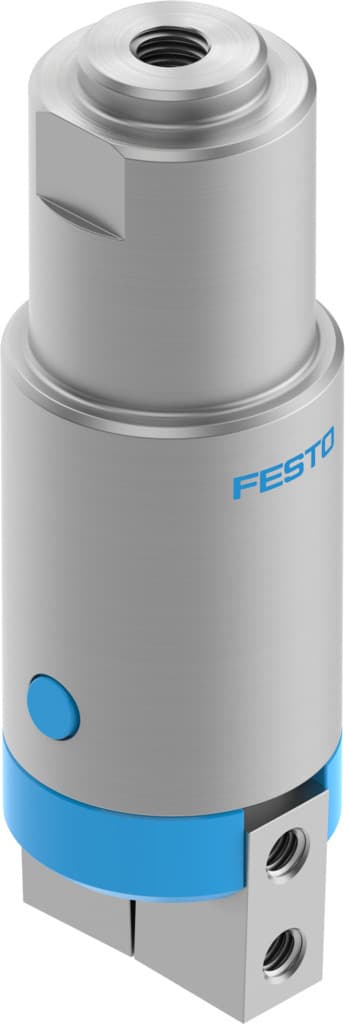

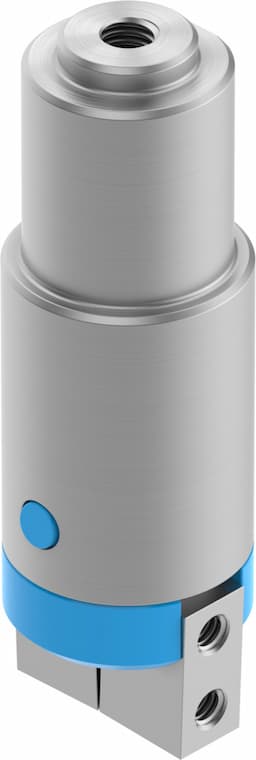

hgwm-08-ez-g8
Product ID:5742
Updated: 2026/4/3
Key Features
- 1Ensure high precision with ≤0.02 mm repeat accuracy. 2、Operate effectively across a 2 to 8 bar pressure range. 3、Utilize a compact, clamped mounting design weighing 13g. 4、Achieve fast cycles with 1 ms opening and 2.5 ms closing times. 5、Benefit from durable, corrosion-resistant high-alloy steel construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 8 | Max. gripper jaw angular play ax, ay | 0.5deg |
| Max. gripper jaw backlash Sz | 0.03mm | Max. opening angle | 14deg |
| Pneumatic gripper repetition accuracy | 0.02mm | Number of gripper jaws | 2 |
| Actuator system | Pneumatic | Mode of operation | Single-acting Closed |
| Gripper function | Angle | Gripping force backup | Without |
| Structural design | Inclined plane | Position sensing | None |
| Symbol | 00991898 | Operating pressure | 2bar 8bar |
| Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 1ms |
| Min. closing time at 6 bar | 2.5ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 5°C 60°C | Spring return torque | 0.006Nm |
| Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening | 24Ncm | Mass moment of inertia | 25.2kgcm2 |
| Mass moment of inertia per external gripper finger | 250kgcm2 | Maximum force on gripper jaw Fz, static | 7N |
| Maximum torque on gripper jaw, Mx static | 0.2Nm | Maximum torque on gripper jaw, My static | 0.2Nm |
| Maximum torque on gripper jaw, Mz static | 0.2Nm | Max. mass per external gripper finger | 400g |
| Product weight | 13g | Type of mounting | Clamped |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Cover cap material | POM | Housing material | High-alloy stainless steel |
| Gripper jaw material | High-alloy steel | Manufacturer ID | 185698 |
Specifications may be subject to change without notice
