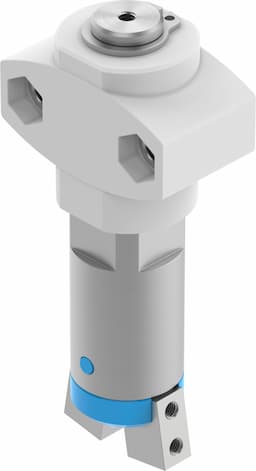

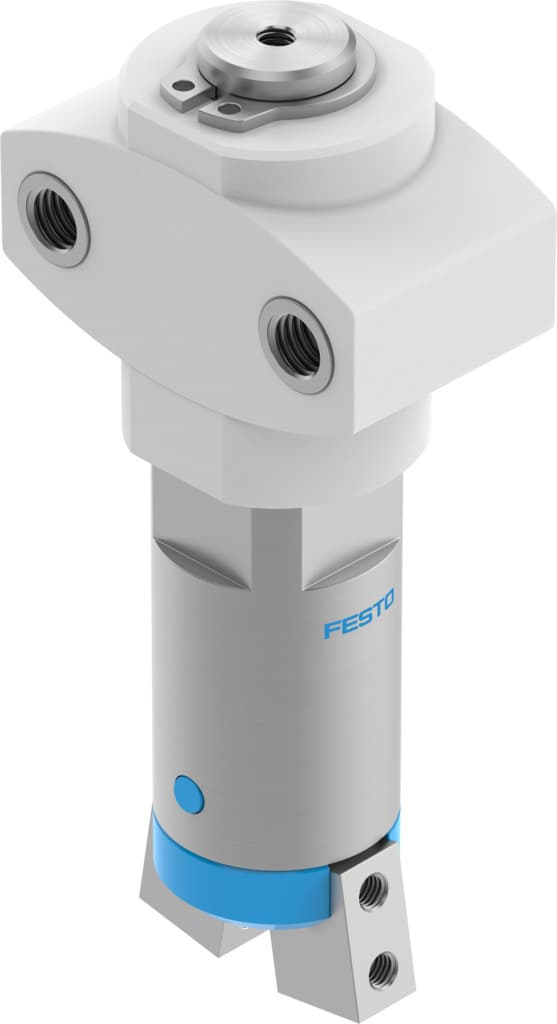

hgwm-12-eo-g6
Product ID:5743
Updated: 2026/4/3
Key Features
- 1Achieve precise handling with ≤0.02 mm repetition accuracy. 2、Enable high-performance operation at up to 4 Hz frequency. 3、Integrate easily with standardized M3 pneumatic connections. 4、Ensure robust operation with corrosion-resistant stainless steel. 5、Save space using the compact 12 mm gripper design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Max. gripper jaw angular play ax, ay | 0.5deg |
| Max. gripper jaw backlash Sz | 0.03mm | Max. opening angle | 18.5deg |
| Pneumatic gripper repetition accuracy | 0.02mm | Number of gripper jaws | 2 |
| Actuator system | Pneumatic | Mode of operation | Single-acting Open |
| Gripper function | Angle | Gripping force backup | Without |
| Structural design | Inclined plane | Position sensing | None |
| Symbol | 00991897 | Operating pressure | 2bar 8bar |
| Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 3.7ms |
| Min. closing time at 6 bar | 1.8ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 5°C 60°C | Stroke compensation spring force | 10N 23N |
| Spring return torque | 0.013Nm | Total gripping torque at 6 bar, closing | 64Ncm |
| Mass moment of inertia | 421kgcm2 | Mass moment of inertia per external gripper finger | 560kgcm2 |
| Maximum force on gripper jaw Fz, static | 20N | Maximum torque on gripper jaw, Mx static | 0.4Nm |
| Maximum torque on gripper jaw, My static | 0.4Nm | Maximum torque on gripper jaw, Mz static | 0.4Nm |
| Max. mass per external gripper finger | 1000g | Product weight | 75g |
| Type of mounting | With internal thread | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Cover cap material | POM |
| Housing material | High-alloy stainless steel | Gripper jaw material | High-alloy steel |
| Manufacturer ID | 185699 |
Specifications may be subject to change without notice
