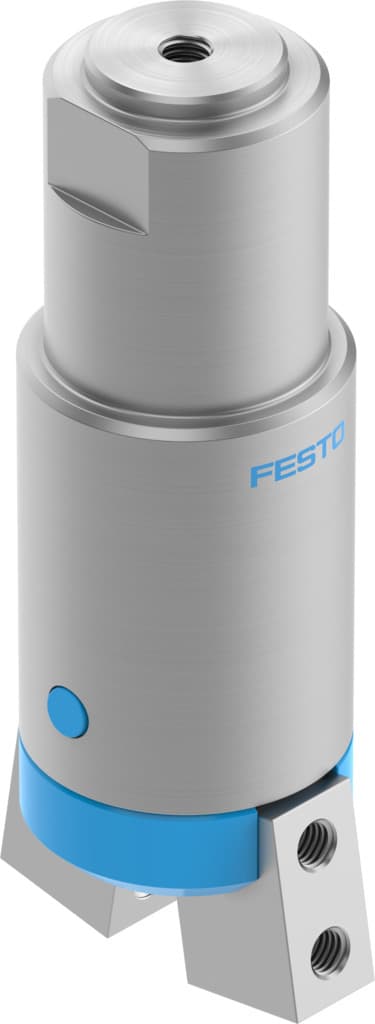

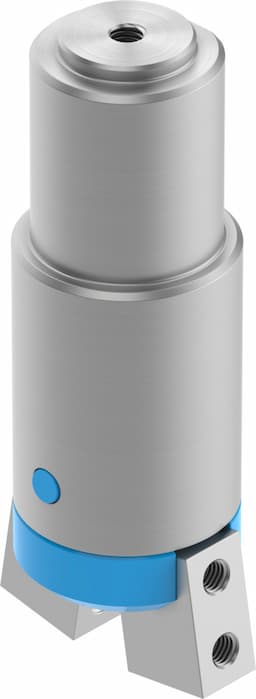

hgwm-12-eo-g8
Product ID:5745
Updated: 2026/4/3
Key Features
- 1Achieve 0.02 mm repeat accuracy and 0.5° max backlash. 2、Operate at 4 Hz with a 3.7 ms opening time at 6 bar. 3、Withstand moderate corrosion with high-alloy steel construction. 4、Integrate easily via wedge drive into diverse pneumatic systems. 5、Reduce load with a compact design weighing only 45 grams.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Max. gripper jaw angular play ax, ay | 0.5deg |
| Max. gripper jaw backlash Sz | 0.03mm | Max. opening angle | 18.5deg |
| Pneumatic gripper repetition accuracy | 0.02mm | Number of gripper jaws | 2 |
| Mode of operation | Single-acting Open | Gripper function | Angle |
| Structural design | Inclined plane | Position sensing | None |
| Symbol | 00991897 | Operating pressure | 2bar 8bar |
| Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 3.7ms |
| Min. closing time at 6 bar | 1.8ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 5°C 60°C | Spring return torque | 0.013Nm |
| Total gripping torque at 6 bar, closing | 64Ncm | Mass moment of inertia | 215.4kgcm2 |
| Mass moment of inertia per external gripper finger | 560kgcm2 | Maximum force on gripper jaw Fz, static | 20N |
| Maximum torque on gripper jaw, Mx static | 0.4Nm | Maximum torque on gripper jaw, My static | 0.4Nm |
| Maximum torque on gripper jaw, Mz static | 0.4Nm | Max. mass per external gripper finger | 1000g |
| Product weight | 45g | Type of mounting | Clamped |
| Pneumatic connection | M3 | Cover cap material | POM |
| Housing material | High-alloy stainless steel | Gripper jaw material | High-alloy steel |
| Manufacturer ID | 185701 |
