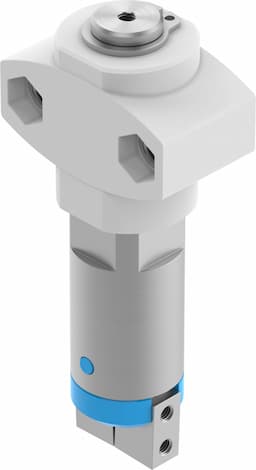

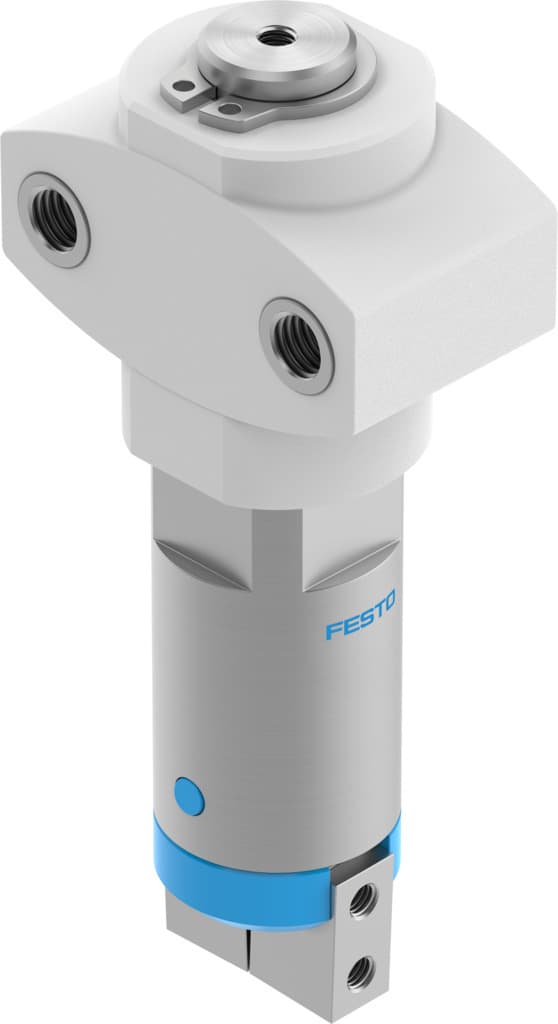

hgwm-12-ez-g6
Product ID:5746
Updated: 2026/4/3
Key Features
- 1Achieve exceptional ≤0.02 mm repeatability for consistent handling. 2、Utilize a compact 12 mm design for space-limited industrial settings. 3、Rely on high-alloyed stainless steel for robust, corrosion-resistant operation. 4、Operate efficiently at 2-8 bar pressure with a 4 Hz max frequency. 5、Simplify installation with female thread fastening and M3 pneumatic connection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Max. gripper jaw angular play ax, ay | 0.5deg |
| Max. gripper jaw backlash Sz | 0.03mm | Max. opening angle | 14deg |
| Pneumatic gripper repetition accuracy | 0.02mm | Number of gripper jaws | 2 |
| Mode of operation | Single-acting Closed | Gripper function | Angle |
| Structural design | Inclined plane | Position sensing | None |
| Symbol | 00991898 | Operating pressure | 2bar 8bar |
| Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 1.7ms |
| Min. closing time at 6 bar | 2.8ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 5°C 60°C | Stroke compensation spring force | 10N 23N |
| Spring return torque | 0.015Nm | Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening | 76Ncm |
| Mass moment of inertia | 421kgcm2 | Mass moment of inertia per external gripper finger | 560kgcm2 |
| Maximum force on gripper jaw Fz, static | 20N | Maximum torque on gripper jaw, Mx static | 0.4Nm |
| Maximum torque on gripper jaw, My static | 0.4Nm | Maximum torque on gripper jaw, Mz static | 0.4Nm |
| Max. mass per external gripper finger | 1000g | Product weight | 75g |
| Type of mounting | With internal thread | Pneumatic connection | M3 |
| Cover cap material | POM | Housing material | High-alloy stainless steel |
| Gripper jaw material | High-alloy steel | Manufacturer ID | 185702 |
