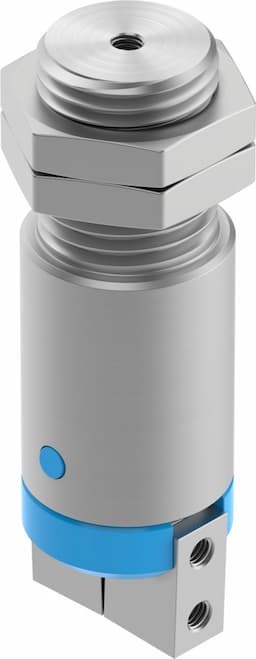

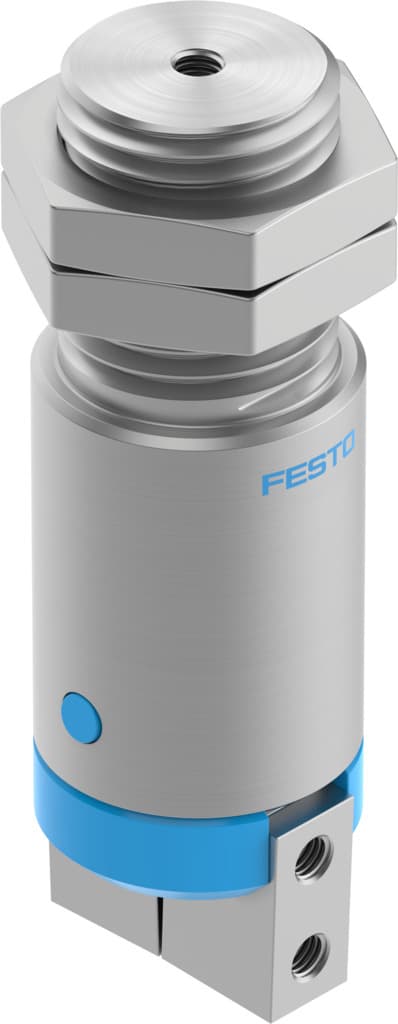

hgwm-12-ez-g7
Product ID:5747
Updated: 2026/4/3
Key Features
- 1Achieve high precision with ≤0.02 mm repeatability. 2、Operate fast with 1.7 ms opening time. 3、Withstand demanding conditions using stainless steel. 4、Mount easily via lock nut and M3 port. 5、Access CAD data for quick integration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Max. gripper jaw angular play ax, ay | 0.5deg |
| Max. gripper jaw backlash Sz | 0.03mm | Max. opening angle | 14deg |
| Pneumatic gripper repetition accuracy | 0.02mm | Number of gripper jaws | 2 |
| Mode of operation | Single-acting Closed | Gripper function | Angle |
| Structural design | Inclined plane | Position sensing | None |
| Symbol | 00991898 | Operating pressure | 2bar 8bar |
| Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 1.7ms |
| Min. closing time at 6 bar | 2.8ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 5°C 60°C | Spring return torque | 0.015Nm |
| Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening | 76Ncm | Mass moment of inertia | 267kgcm2 |
| Mass moment of inertia per external gripper finger | 560kgcm2 | Maximum force on gripper jaw Fz, static | 20N |
| Maximum torque on gripper jaw, Mx static | 0.4Nm | Maximum torque on gripper jaw, My static | 0.4Nm |
| Maximum torque on gripper jaw, Mz static | 0.4Nm | Max. mass per external gripper finger | 1000g |
| Product weight | 52g | Type of mounting | With lock nut |
| Pneumatic connection | M3 | Cover cap material | POM |
| Housing material | High-alloy stainless steel | Gripper jaw material | High-alloy steel |
| Manufacturer ID | 185703 |
