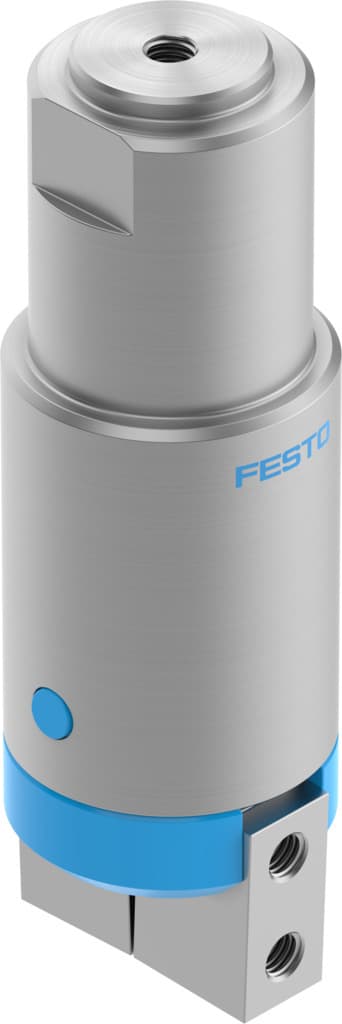

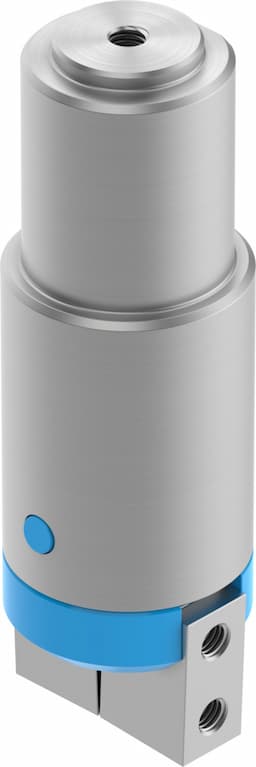

hgwm-12-ez-g8
Product ID:5748
Updated: 2026/4/3
Key Features
- 1Achieve high precision with 0.5° max backlash and 0.02 mm repeat accuracy. 2、Operate versatilely in single-acting closed mode for various applications. 3、Enable fast actuation with 1.7 ms opening and 2.8 ms closing times. 4、Ensure robust construction with high-alloy stainless steel housing. 5、Utilize standard compressed air per ISO 8573-1:2010 for compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Max. gripper jaw angular play ax, ay | 0.5deg |
| Max. gripper jaw backlash Sz | 0.03mm | Max. opening angle | 14deg |
| Pneumatic gripper repetition accuracy | 0.02mm | Number of gripper jaws | 2 |
| Mode of operation | Single-acting Closed | Gripper function | Angle |
| Structural design | Inclined plane | Position sensing | None |
| Symbol | 00991898 | Operating pressure | 2bar 8bar |
| Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 1.7ms |
| Min. closing time at 6 bar | 2.8ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 5°C 60°C | Spring return torque | 0.015Nm |
| Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening | 76Ncm | Mass moment of inertia | 215.4kgcm2 |
| Mass moment of inertia per external gripper finger | 560kgcm2 | Maximum force on gripper jaw Fz, static | 20N |
| Maximum torque on gripper jaw, Mx static | 0.4Nm | Maximum torque on gripper jaw, My static | 0.4Nm |
| Maximum torque on gripper jaw, Mz static | 0.4Nm | Max. mass per external gripper finger | 1000g |
| Product weight | 45g | Type of mounting | Clamped |
| Pneumatic connection | M3 | Cover cap material | POM |
| Housing material | High-alloy stainless steel | Gripper jaw material | High-alloy steel |
| Manufacturer ID | 185704 |
