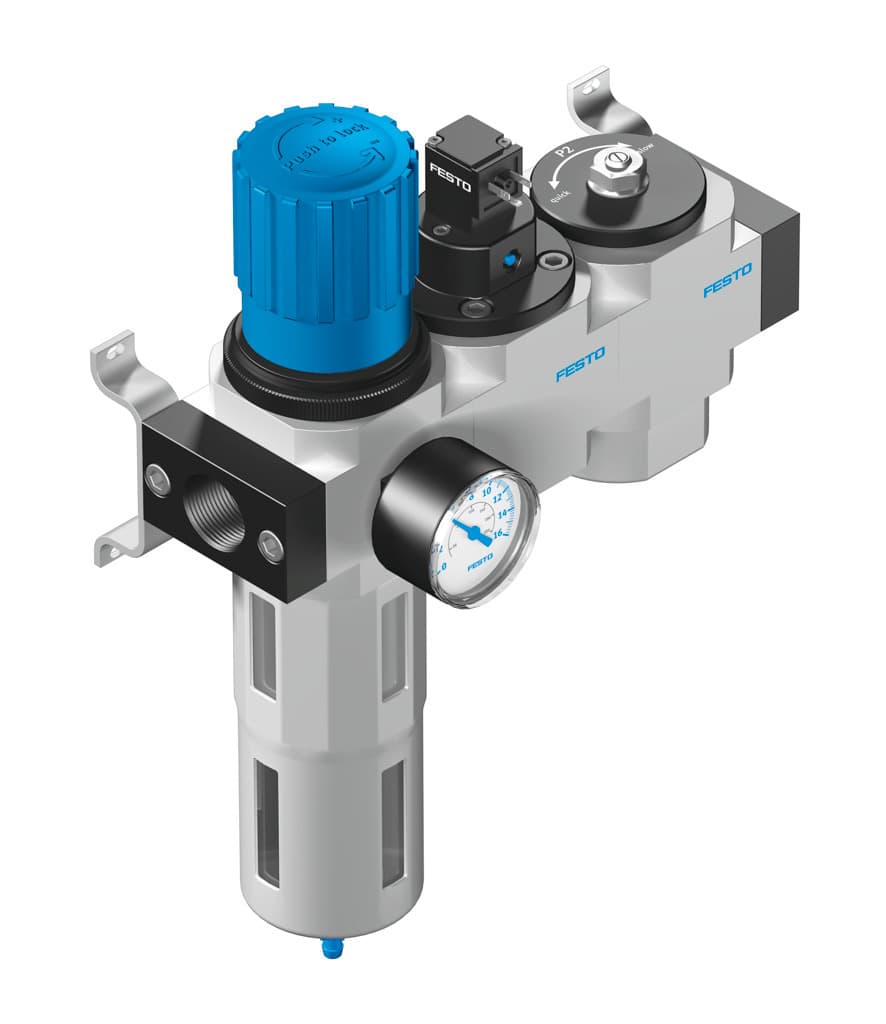

Key Features
- 1Meet ISO 13849-1 standards for safety-critical applications. 2、Filter contaminants down to 40µm for clean air supply. 3、Enable easy maintenance with a manual condensate drain. 4、Control airflow precisely via 24V DC solenoid valve. 5、Deliver 4300L/min flow for diverse industrial needs.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Maxi | Series | D |
| Actuator lock | Rotary knob with detent | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Manually rotating |
| Structural design | Shut off valve Filter regulator with pressure gauge Safety start-up valve | Max. condensate volume | 80ml |
| Bowl guard | Metal bowl guard | Symbol | 00991766 |
| Pressure gauge | with pressure gauge | Operating pressure | 43.5psi 232psi |
| Pressure regulation range MPa | 0.25MPa 1.2MPa | Pressure regulation range | 2.5bar 12bar |
| Pressure regulation range psi | 36.25psi 174psi | Max. pressure hysteresis | 4.35psi |
| Standard nominal flow rate | 4300l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 3100g |
| Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 | Housing material | Die-cast zinc |
| Material of bowl | PC | Manufacturer ID | 186045 |
Specifications may be subject to change without notice
