Key Features
- 1Ensure high-quality compressed air with a 9,200 l/min flow rate. 2、Reduce downtime via an automatic 80 cm³ condensate drain. 3、Achieve 40 μm filtration meeting ISO 8573-1:2010 standards. 4、Resist corrosion with die-cast zinc and PC bowl construction. 5、Mount flexibly with vertical +/-5° angle installation tolerance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Maxi | Series | D |
| Actuator lock | Rotary knob with detent | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Fully automatic |

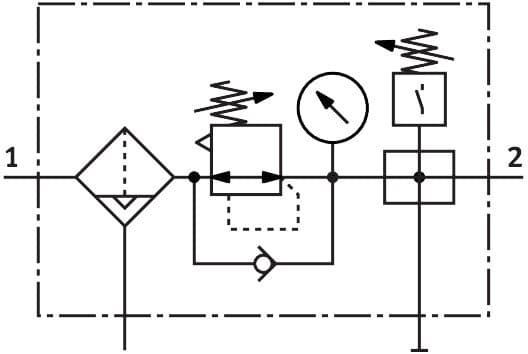

| Structural design | Branching module Pressure switch Filter regulator with pressure gauge | Max. condensate volume | 80ml |
| Bowl guard | Metal bowl guard | Symbol | 00991778 |
| Pressure gauge | with pressure gauge | Operating pressure | 29psi 174psi |
| Pressure regulation range MPa | 0.05MPa 1.2MPa | Pressure regulation range | 0.5bar 12bar |
| Pressure regulation range psi | 7.25psi 174psi | Max. pressure hysteresis | 2.9psi |
| Standard nominal flow rate | 9200l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 2400g |
| Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 | Housing material | Die-cast zinc |
| Material of bowl | PC | Manufacturer ID | 186048 |
Specifications may be subject to change without notice
