Key Features
- 1Ensure clean air with 5 µm filtration to remove contaminants. 2、Achieve 5 million cycles for long-term reliability and uptime. 3、Save space using the compact 44 mm width design. 4、Simplify installation with vertical +/-5° mounting flexibility. 5、Enable easy control via the rotary knob with detent lock.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Width | 44mm |
| Series | DB | Actuator lock | Rotary knob with detent |
| Mounting position | Vertical +/- 5° | Grade of filtration | 5μm |
| Condensate drain | Semi-automatic | Structural design | Filter regulator with pressure gauge |

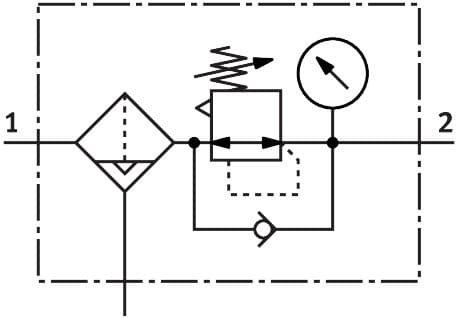

| Controller function | With secondary exhausting With return flow function | Symbol | 00991587 |
| Pressure gauge | with pressure gauge | Operating pressure | 1.5bar 10bar |
| Pressure regulation range | 0.5bar 7bar | Max. pressure hysteresis | 0.5bar |
| Standard nominal flow rate | 1000l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas | Temperature of medium | -5°C 50°C |
| Ambient temperature | -5°C 50°C | Product weight | 200g |
| Type of mounting | Optionally: Line installation With through-hole With mounting bracket | Pressure gauge connection | G1/8 |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Rotary knob material | POM | Compressed air filter material | PE |
| Housing material | PA-reinforced | Material of bowl | PC |
| Manufacturer ID | 539690 |
