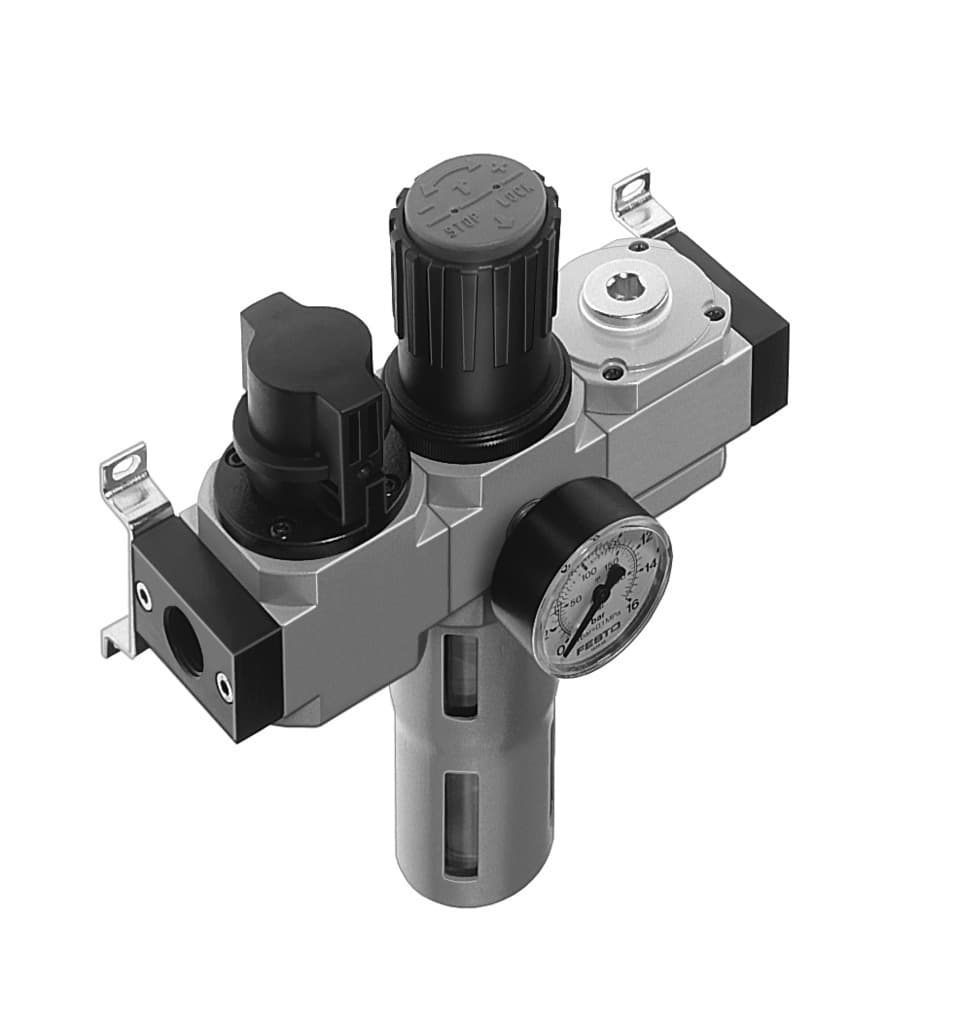

Key Features
- 1Regulate pressure precisely up to 12 bar for optimal system performance. 2、Achieve high flow rates of 1050 L/min for efficient operations. 3、Connect easily with 2 x G1/4" ports for secure pneumatic integration. 4、Ensure clean air with 40µm filtration for enhanced component reliability. 5、Mount flexibly within +/-5° vertical for versatile installation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Series | D |
| Actuator lock | Rotary knob with detent | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Manually rotating |
| Structural design | Branching module Shut off valve Filter regulator with pressure gauge | Max. condensate volume | 22ml |
| Bowl guard | Metal bowl guard | Symbol | 00991522 |
| Pressure gauge | with pressure gauge | Operating pressure | 14.5psi 232psi |
| Pressure regulation range MPa | 0.05MPa 1.2MPa | Pressure regulation range | 0.5bar 12bar |
| Pressure regulation range psi | 7.25psi 174psi | Max. pressure hysteresis | 2.9psi |
| Standard nominal flow rate | 1050l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 1000g |
| Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Housing material | Die-cast zinc |
| Material of bowl | PC | Manufacturer ID | 185721 |
Specifications may be subject to change without notice
