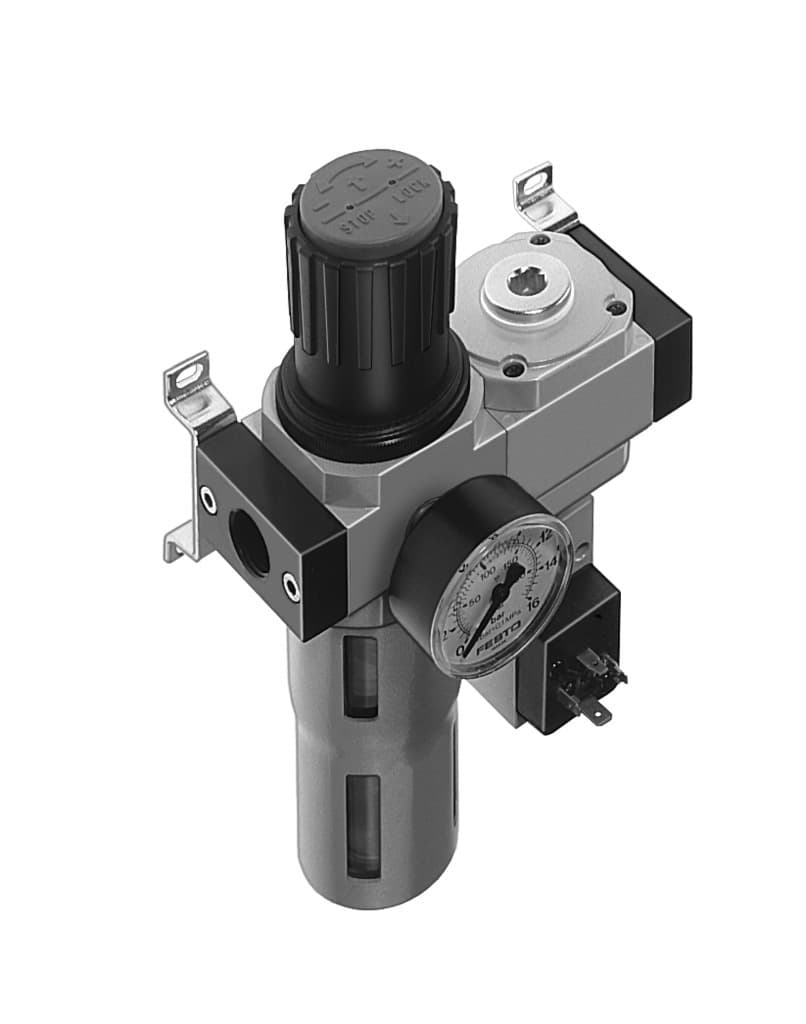

Key Features
- 1Regulate pressure from 0.05 to 1.2 MPa for demanding applications. 2、Utilize a compact 40 mm grid for space-efficient installations. 3、Connect easily with two standard G1/8" threaded ports. 4、Filter contaminants effectively with a 40 μm filtration level. 5、Deliver reliable performance with a 720 L/min flow rate.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Series | D |
| Actuator lock | Rotary knob with detent | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Manually rotating |
| Structural design | Branching module Pressure switch Filter regulator with pressure gauge | Max. condensate volume | 22ml |
| Bowl guard | Metal bowl guard | Symbol | 00991525 |
| Pressure gauge | with pressure gauge | Operating pressure | 14.5psi 232psi |
| Pressure regulation range MPa | 0.05MPa 1.2MPa | Pressure regulation range | 0.5bar 12bar |
| Pressure regulation range psi | 7.25psi 174psi | Max. pressure hysteresis | 2.175psi |
| Standard nominal flow rate | 720l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 1000g |
| Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 | Housing material | Die-cast zinc |
| Material of bowl | PC | Manufacturer ID | 185755 |
Specifications may be subject to change without notice
