Key Features
- 1Adhere to ISO 13849-1 and ISO 13849-2 for safety-related applications. 2、Operate in a wide -10 °C to 60 °C temperature range for versatility. 3、Ensure high air purity with a 40 μm filter porosity per ISO 8573-1. 4、Control pressure precisely with a 0.5-12 bar range and 0.20 bar hysteresis. 5、Utilize robust die-cast zinc housing and PC clamps for durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Maxi | Series | D |
| Actuator lock | Rotary knob with detent | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Fully automatic |
| Structural design | Branching module Filter regulator with pressure gauge | Max. condensate volume | 80ml |

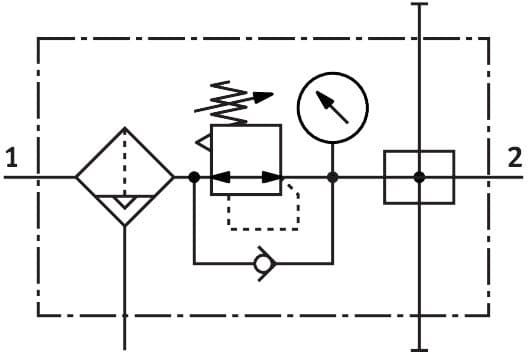

| Bowl guard | Metal bowl guard | Symbol | 00991776 |
| Pressure gauge | with pressure gauge | Operating pressure | 29psi 174psi |
| Pressure regulation range MPa | 0.05MPa 1.2MPa | Pressure regulation range | 0.5bar 12bar |
| Pressure regulation range psi | 7.25psi 174psi | Max. pressure hysteresis | 4.35psi |
| Standard nominal flow rate | 9400l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 2400g |
| Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | G3/4 |
| Pneumatic connection 2 | G3/4 | Housing material | Die-cast zinc |
| Material of bowl | PC | Manufacturer ID | 185718 |
Specifications may be subject to change without notice
