Key Features
- 1Ensure high air purity with a 40 µm filtration grade. 2、Minimize maintenance using the automatic condensate drain. 3、Withstand harsh conditions with a die-cast zinc housing. 4、Install flexibly with +/-5° vertical mounting capability. 5、Meet ISO 8573-1 and RoHS standards for compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Midi | Series | D |
| Actuator lock | Rotary knob with detent | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Fully automatic |

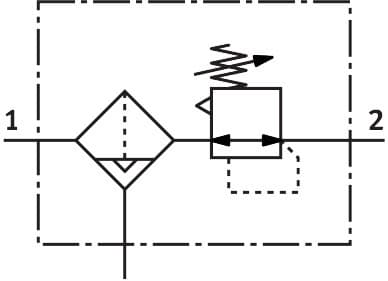

| Structural design | Filter regulator with pressure gauge | Max. condensate volume | 42.983ml |
| Bowl guard | Metal bowl guard | Symbol | 00991584 |
| Pressure gauge | G1/4 prepared | Operating pressure | 1.931bar 12.411bar |
| Pressure regulation range | 0.476bar 7.239bar | Max. pressure hysteresis | 0.207bar |
| Standard nominal flow rate | 9343.22l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:9:-] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas | Temperature of medium | 5°C 60°C |
| Ambient temperature | 5°C 60°C | Product weight | 893.025g |
| Type of mounting | Optionally: Line installation With accessories | Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc | Material of bowl | PC |
| Manufacturer ID | 546464 |
Specifications may be subject to change without notice
