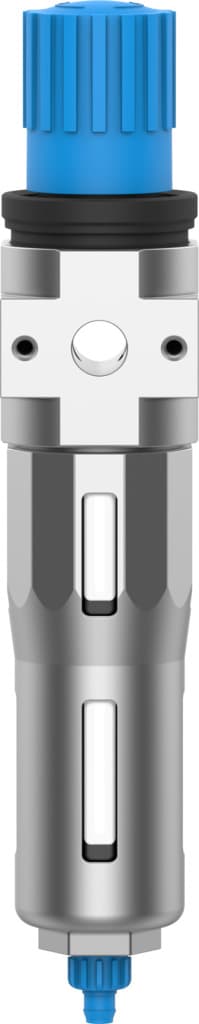

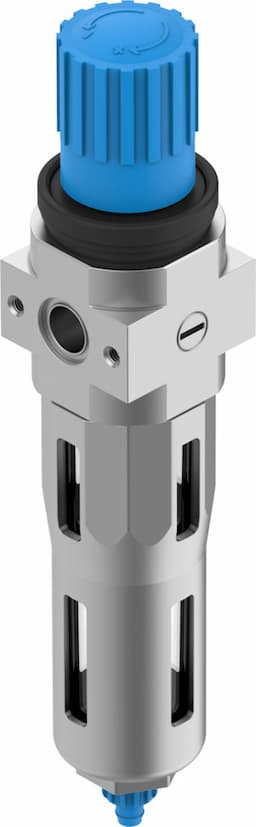

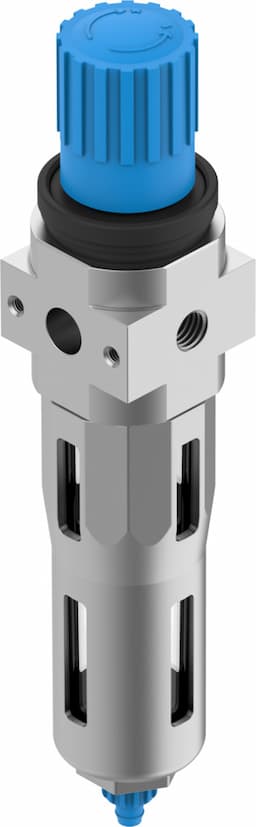

Key Features
- 1Ensure clean air with a 40 μm high-grade filtration system. 2、Save space using the compact mini series design. 3、Mount flexibly with ±5° vertical angle adjustment. 4、Minimize maintenance via a fully automatic condensate drain. 5、Resist corrosion with robust die-cast zinc housing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Series | D |
| Actuator lock | Rotary knob with detent | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Manually rotating |
| Structural design | Filter regulator without pressure gauge | Max. condensate volume | 21.991ml |
| Bowl guard | Metal bowl guard | Symbol | 00991586 |
| Pressure gauge | G1/8 prepared | Operating pressure | 0.951bar 16.547bar |
| Pressure regulation range | 0.476bar 12.411bar | Max. pressure hysteresis | 0.207bar |
| Standard nominal flow rate | 3336.86l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 406.823g |
| Type of mounting | Optionally: Line installation With accessories | Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc | Material of bowl | PC |
| Manufacturer ID | 546432 |
Specifications may be subject to change without notice
