Key Features
- 1Ensure clean air with 40µm filtration for reliable system operation. 2、Maintain 0.5-7 bar pressure for consistent application performance. 3、Handle demanding flows with a 3900 L/min nominal rate. 4、Rely on die-cast zinc housing for durable, corrosion-resistant use. 5、Integrate easily via G1/2 ports with connecting plates.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Midi | Series | D |
| Actuator lock | Rotary knob with integrated lock | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Manually rotating |

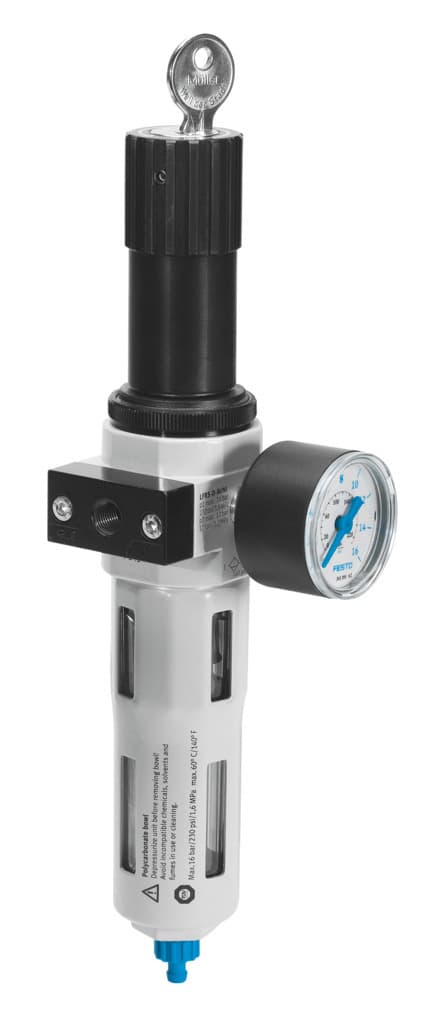

| Structural design | Filter regulator with pressure gauge | Max. condensate volume | 43ml |
| Bowl guard | Metal bowl guard | Symbol | 00991585 |
| Pressure gauge | with pressure gauge | Operating pressure | 1bar 16bar |
| Pressure regulation range | 0.5bar 7bar | Max. pressure hysteresis | 0.2bar |
| Standard nominal flow rate | 3900l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 1140g |
| Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 | Note on materials | RoHS-compliant |
| Housing material | Die-cast zinc | Material of bowl | PC |
| Manufacturer ID | 194760 |
Specifications may be subject to change without notice
