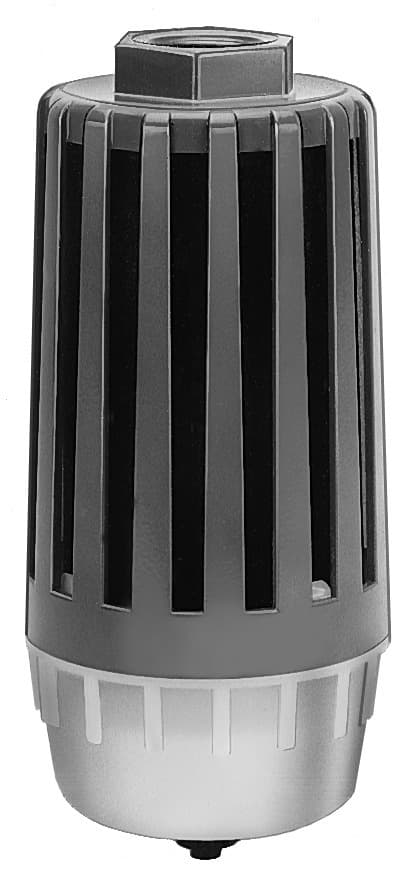

lfu-1
Product ID:703
Updated: 2026/4/3
Key Features
- 1Deliver 12,500 L/min flow for efficient air filtration. 2、Withstand low corrosion stress with CRC1 resistance class. 3、Mount flexibly using a screw-in installation mechanism. 4、Meet LABS and VDMA24364 standards for compliance. 5、Integrate compactly in sizes like G1/4.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Symbol | 00991531 | Inlet pressure 1 | 0bar 16bar |
| Inlet pressure 1 MPa | 0MPa 1.6MPa | Inlet pressure 1 psi | 0psi 232psi |
| Flow rate with respect to atmosphere | 12500l/min | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Type of mounting | Screw-in |
| Pneumatic connection | G1 | Note on materials | RoHS-compliant |
| Manufacturer ID | 10495 |
Specifications may be subject to change without notice
