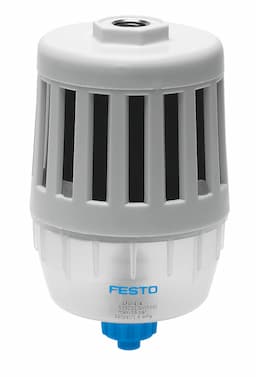

lfu-3/8
Product ID:10411
Updated: 2026/4/3
Key Features
- 1Provide 1 μm grade filtration for clean compressed air. 2、Feature a manually rotating condensate drain for easy maintenance. 3、Allow vertical +/- 5° mounting for versatile integration. 4、Operate at 0 MPa for wide application suitability. 5、Offer a compact G3/8 size for space-constrained environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | G3/8 | Mounting position | Vertical +/- 5° |
| Grade of filtration | 1μm | Condensate drain | Manually rotating |
| Symbol | 00991531 | Operating pressure | 0psi 232psi |
| Flow rate with respect to atmosphere | 4700l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Noise reduction | Reduction by 40 dB |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Noise level | 78dB(A) | Ambient temperature | -10°C 60°C |
| Product weight | 190g | Pneumatic connection | G3/8 |
| Housing material | PP | Manufacturer ID | 539133 |
Specifications may be subject to change without notice
