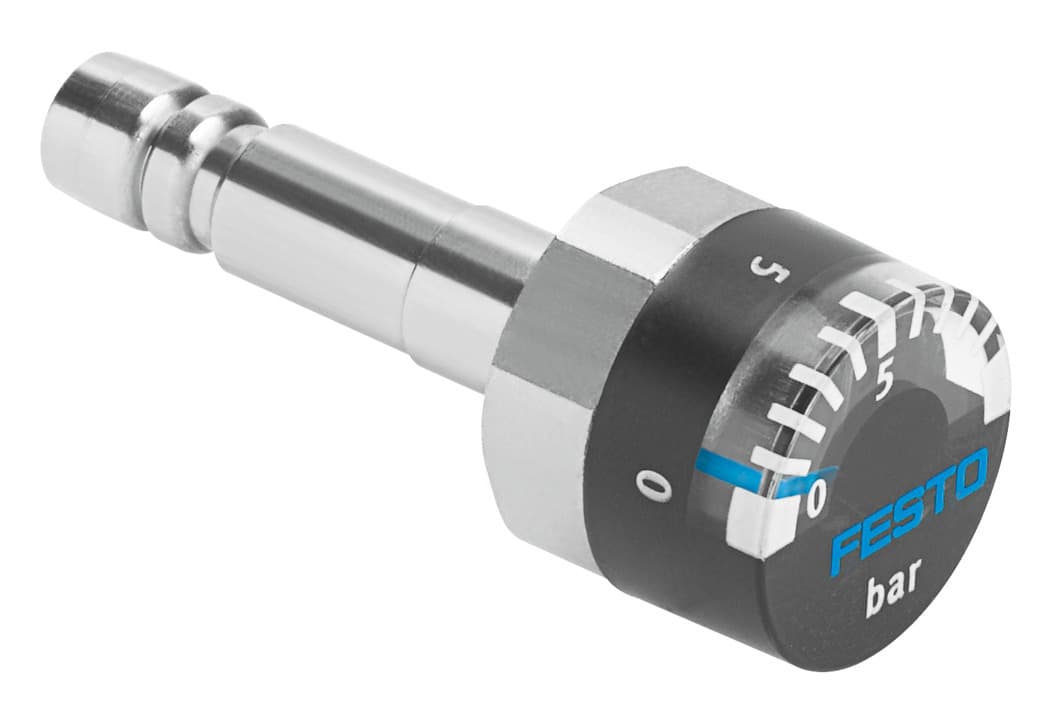

ma-15-10-qs-8
Product ID:2722
Updated: 2026/4/3
Key Features
- 1Achieve Class 5 measurement accuracy for precise pressure readings. 2、Rely on a durable Bourdon tube design without a measuring mechanism. 3、Use with inert gases and neutral fluids for versatile industrial applications. 4、Handle pressures from 0 to 10 bar (0 to 145 psi) reliably. 5、Meet LABS (PWIS) and RoHS standards for safety and compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Display range | 0bar 10bar | Symbol | 00991463 |
| Pressure gauge nominal size | 15 | Structural design | Bourdon tube pressure gauge without measuring mechanism |
| Type of mounting | Line installation | Operating medium | Inert gas Neutral liquids |
| Information on operating and pilot media | No acetylene No oxygen | Operating pressure | 0psi 145psi |
| Intermittent load factor | 0.66 | Measurement accuracy class | 5 |
| Degree of protection | IP53 | Temperature of medium | -20°C 60°C |
| Ambient temperature | -20°C 60°C | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Connection position | Centered on rear side |
| Pneumatic connection | QS-8 | Materials in contact with the media | Brass |
| Material of screwed plug | Brass | Housing material | Steel |
| Inspection window material | PC | Housing colour | Black |
| Product weight | 10g | Scale | Single scale bar (au?en) |
| Manufacturer ID | 153385 |
Specifications may be subject to change without notice
