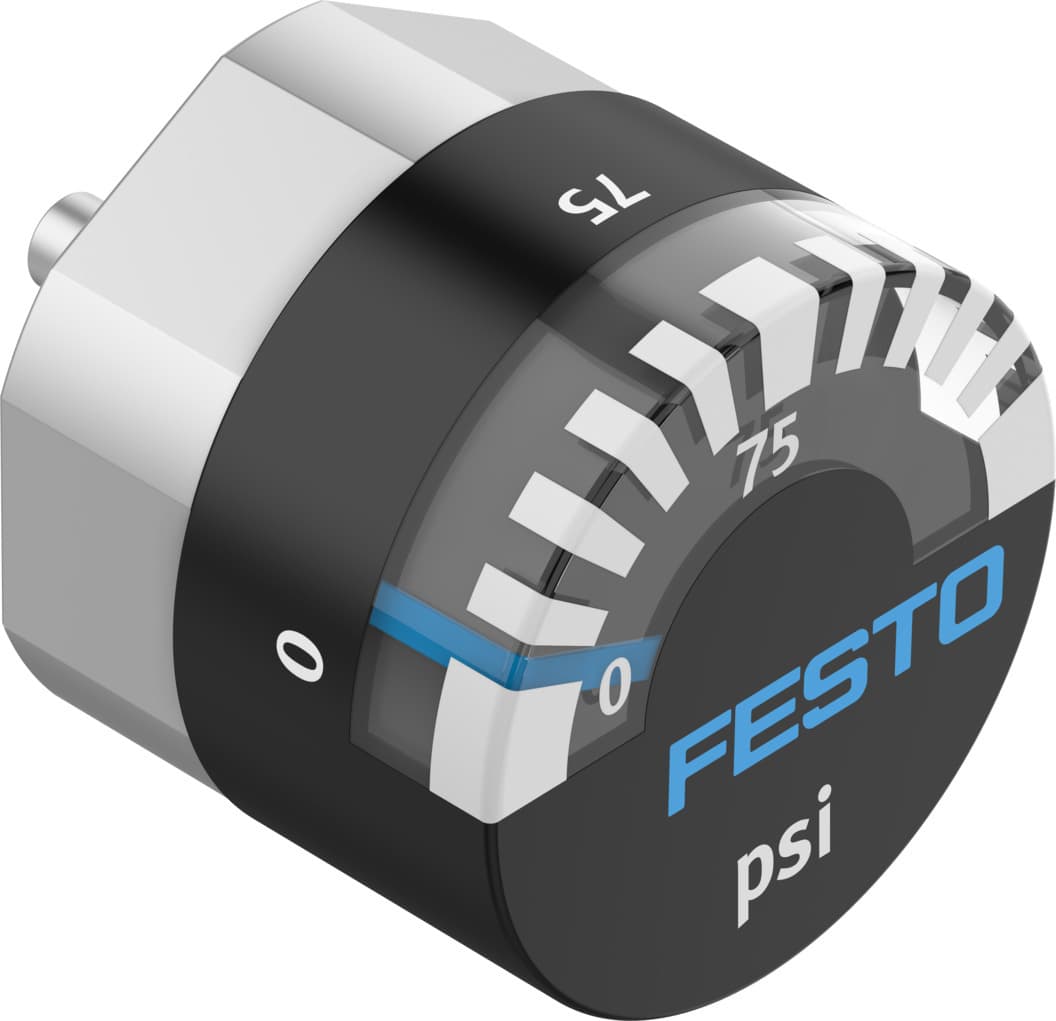

ma-15-145-m5-psi
Product ID:1187
Updated: 2026/7/4
Key Features
- 1Measure 0-145 psi pressure with high accuracy using a Bourdon tube.
- 2Ensure compatibility with inert gases and neutral liquids.
- 3Install easily with a centered rear-side M5 connection.
- 4Rely on durable brass, steel, and PC construction meeting RoHS standards.
- 5Operate reliably in temperatures from -20°C to 60°C.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Display range | 0psi 145psi | Symbol | 00991463 |
| Pressure gauge nominal size | 15 | Structural design | Bourdon tube pressure gauge without measuring mechanism |
| Type of mounting | Line installation | Operating medium | Inert gas Neutral liquids |
| Information on operating and pilot media | No acetylene No oxygen | Operating pressure | 0psi 145psi |
| Intermittent load factor | 0.66 | Measurement accuracy class | 5 |
| Degree of protection | IP53 | Temperature of medium | -20°C 60°C |
| Ambient temperature | -20°C 60°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS-compliant | Connection position | Centered on rear side |
| Pneumatic connection | M5 | Material of screwed plug | Brass |
| Housing material | Steel | Inspection window material | PC |
| Housing colour | Black | Product weight | 10g |
| Scale | Single scale psi (external) | Manufacturer ID | 132341 |
Specifications may be subject to change without notice
