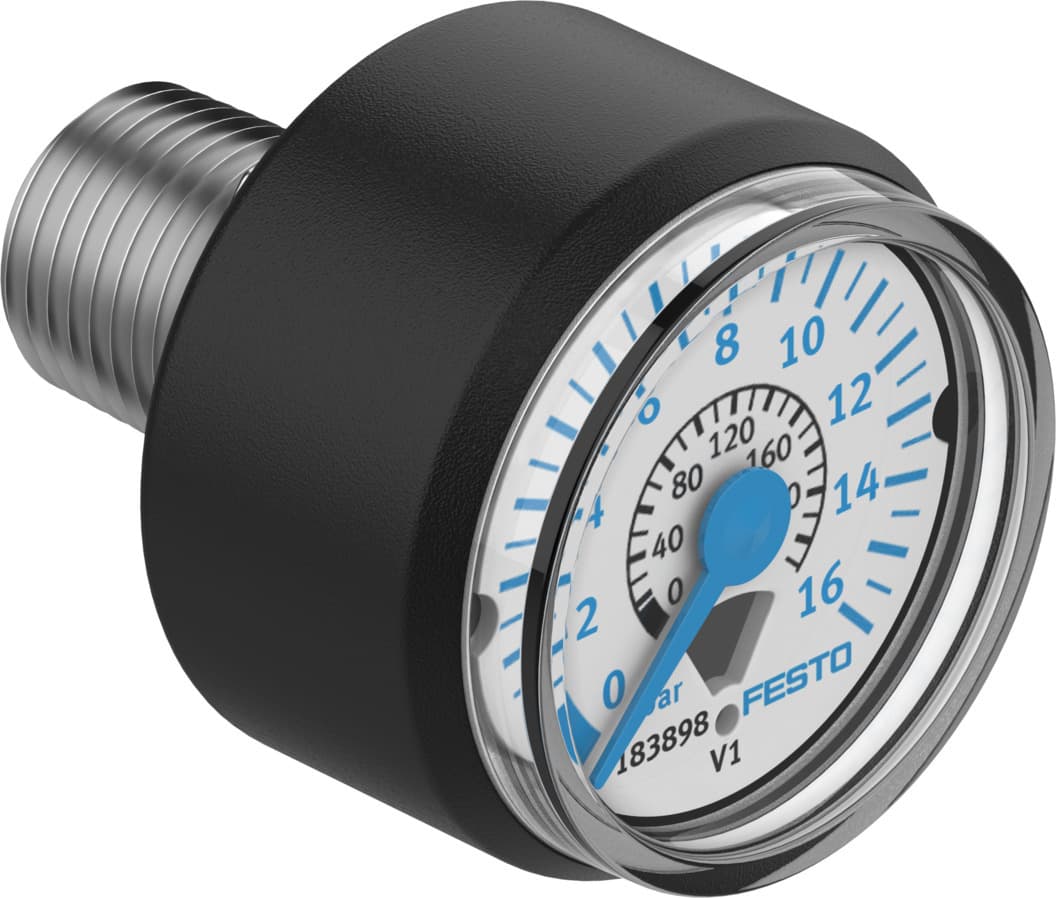

ma-23-16-r1/8
Product ID:5703
Updated: 2026/7/4
Key Features
- 1Measure pressure up to 16 bar with high accuracy.
- 2Display readings in both bar and psi units.
- 3Ensure compatibility with inert gases and neutral fluids.
- 4Integrate easily via line installation with a 23 nominal size.
- 5Rely on Festo's quality for durable and consistent performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Display range | 0psi 232psi | Symbol | 00991463 |
| Pressure gauge nominal size | 23 | Structural design | Bourdon tube pressure gauge |
| Type of mounting | Line installation | Operating medium | Inert gas Neutral liquids |
| Information on operating and pilot media | No acetylene No oxygen | Operating pressure | 0psi 232psi |
| Intermittent load factor | 0.6 | Measurement accuracy class | 4 |
| Degree of protection | IP44 | Temperature of medium | -20°C 60°C |
| Ambient temperature | -20°C 60°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS-compliant | Connection position | Centered on rear side |
| Pneumatic connection | R1/8 | Materials in contact with the media | Brass |
| Material of screwed plug | Brass | Housing material | Brass |
| Inspection window material | PC | Housing colour | Black |
| Product weight | 27g | Scale | Double scale bar (au?en) psi (internal) |
| Manufacturer ID | 183898 |
Specifications may be subject to change without notice
