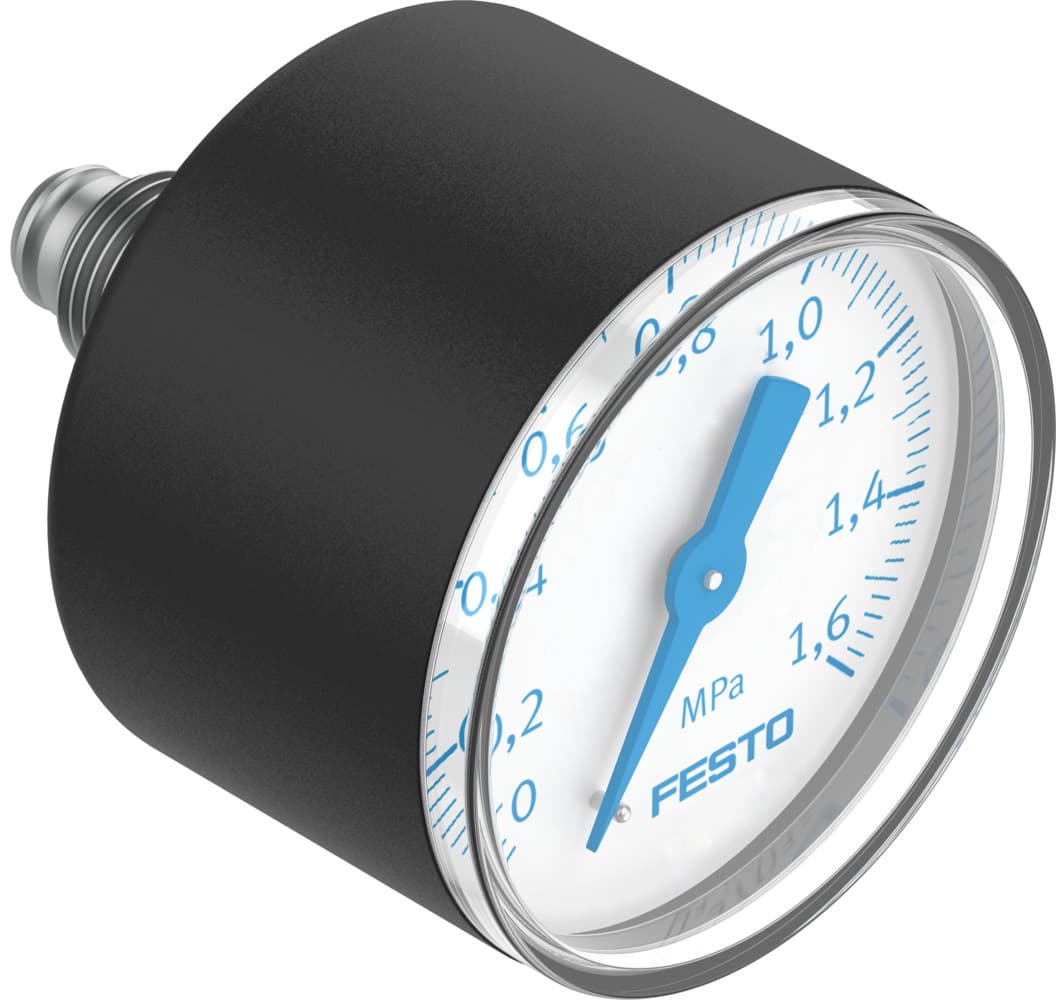

ma-40-1,6-g1/8-mpa
Product ID:7237
Updated: 2026/4/3
Key Features
- 1Measure pressures with high 2.5 accuracy class. 2、Rely on durable Bourdon-tube design for consistency. 3、Monitor a wide range from 0 to 1.6 MPa. 4、Withstand harsh conditions using brass and ABS. 5、Ensure compliance with EN 837-1 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Display range | 0MPa 1.6MPa | Symbol | 00991463 |
| Conforms to standard | EN 837-1 | Pressure gauge nominal size | 40 |
| Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Structural design | Bourdon tube pressure gauge |
| Type of mounting | Line installation | Operating medium | Inert gas Neutral liquids |
| Information on operating and pilot media | No acetylene No oxygen | Operating pressure | 0psi 232psi |
| Intermittent load factor | 0.66 | Measurement accuracy class | 2.5 |
| Degree of protection | IP43 | Temperature of medium | -20°C 60°C |
| Ambient temperature | -20°C 60°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS-compliant | Connection position | Centered on rear side |
| Pneumatic connection | G1/8 | Materials in contact with the media | Brass |
| Material of screwed plug | Brass | Housing material | ABS |
| Inspection window material | PS | Housing colour | Black |
| Product weight | 60g | Scale | Single scale MPa (external) |
| Manufacturer ID | 192733 |
Specifications may be subject to change without notice
