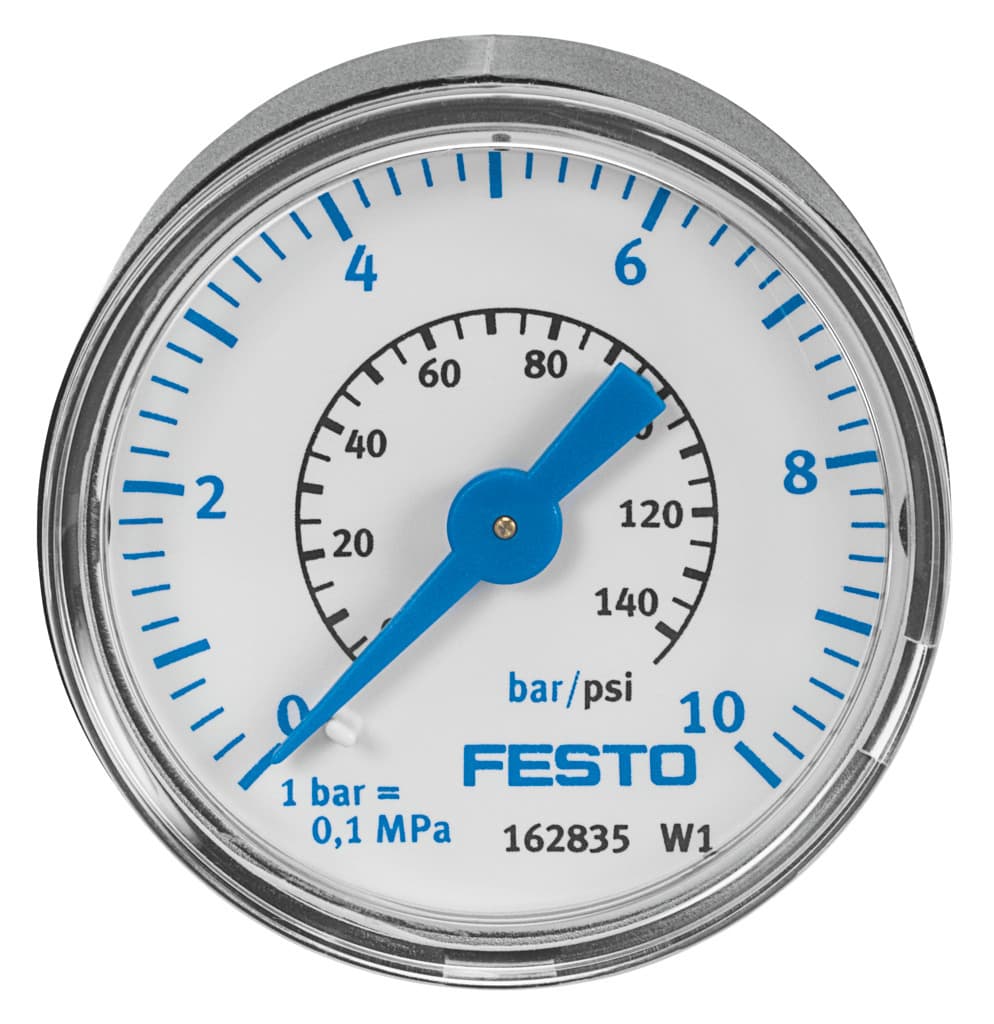

ma-50-10-1/4-en
Product ID:4483
Updated: 2026/4/3
Key Features
- 1Ensure precise measurements up to 10 bar with high accuracy. 2、Read pressure easily on dual bar and psi scales. 3、Integrate seamlessly using G1/4 pneumatic connections. 4、Install effortlessly in tight spaces with a compact design. 5、Withstand harsh industrial conditions for durable performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Display range | 0psi 145psi | Symbol | 00991463 |
| Conforms to standard | EN 837-1 | Pressure gauge nominal size | 50 |
| Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Structural design | Bourdon tube pressure gauge |
| Type of mounting | Line installation | Operating medium | Inert gas Neutral liquids |
| Information on operating and pilot media | No acetylene No oxygen | Operating pressure | 0psi 145psi |
| Intermittent load factor | 0.66 | Measurement accuracy class | 2.5 |
| Degree of protection | IP43 | Temperature of medium | -20°C 60°C |
| Ambient temperature | -20°C 60°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS-compliant | Connection position | Centered on rear side |
| Pneumatic connection | G1/4 | Materials in contact with the media | Brass |
| Material of screwed plug | Brass | Housing material | ABS |
| Inspection window material | PS | Housing colour | Black |
| Product weight | 70g | Scale | Double scale bar (au?en) psi (internal) |
| Manufacturer ID | 162838 |
Specifications may be subject to change without notice
