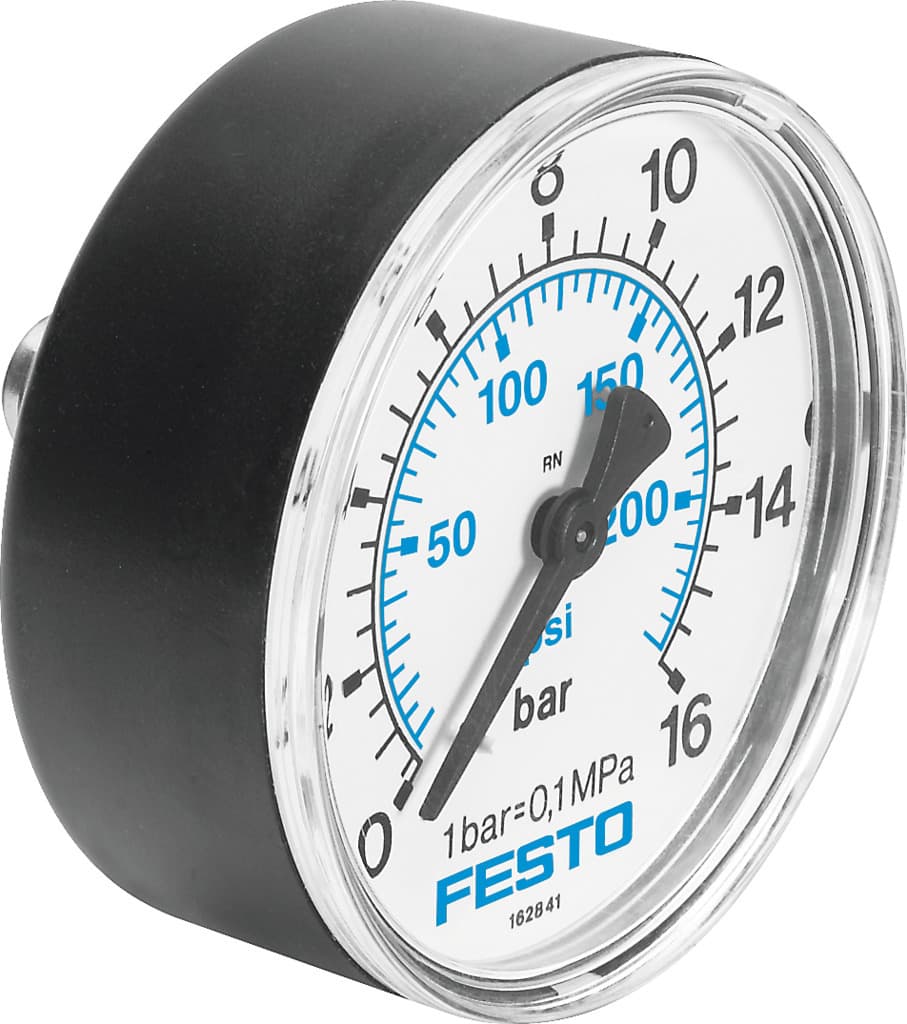

ma-50-16-1/4-en
Product ID:4484
Updated: 2026/7/4
Key Features
- 1Measure pressure from 0 to 16 bar with high accuracy.
- 2Install easily with direct or front mount options.
- 3Ensure durability with a nickel-plated steel housing.
- 4Meet EN 837-1 standards for reliable performance.
- 5Resist shock and vibration in industrial settings.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Display range | 0psi 232psi | Symbol | 00991463 |
| Conforms to standard | EN 837-1 | Pressure gauge nominal size | 50 |
| Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Structural design | Bourdon tube pressure gauge |
| Type of mounting | Line installation | Operating medium | Inert gas Neutral liquids |
| Information on operating and pilot media | No acetylene No oxygen | Operating pressure | 0psi 232psi |
| Intermittent load factor | 0.66 | Measurement accuracy class | 2.5 |
| Degree of protection | IP43 | Temperature of medium | -20°C 60°C |
| Ambient temperature | -20°C 60°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS-compliant | Connection position | Centered on rear side |
| Pneumatic connection | G1/4 | Materials in contact with the media | Brass |
| Material of screwed plug | Brass | Housing material | ABS |
| Inspection window material | PS | Housing colour | Black |
| Product weight | 70g | Scale | Double scale bar (au?en) psi (internal) |
| Manufacturer ID | 162839 |
Specifications may be subject to change without notice
