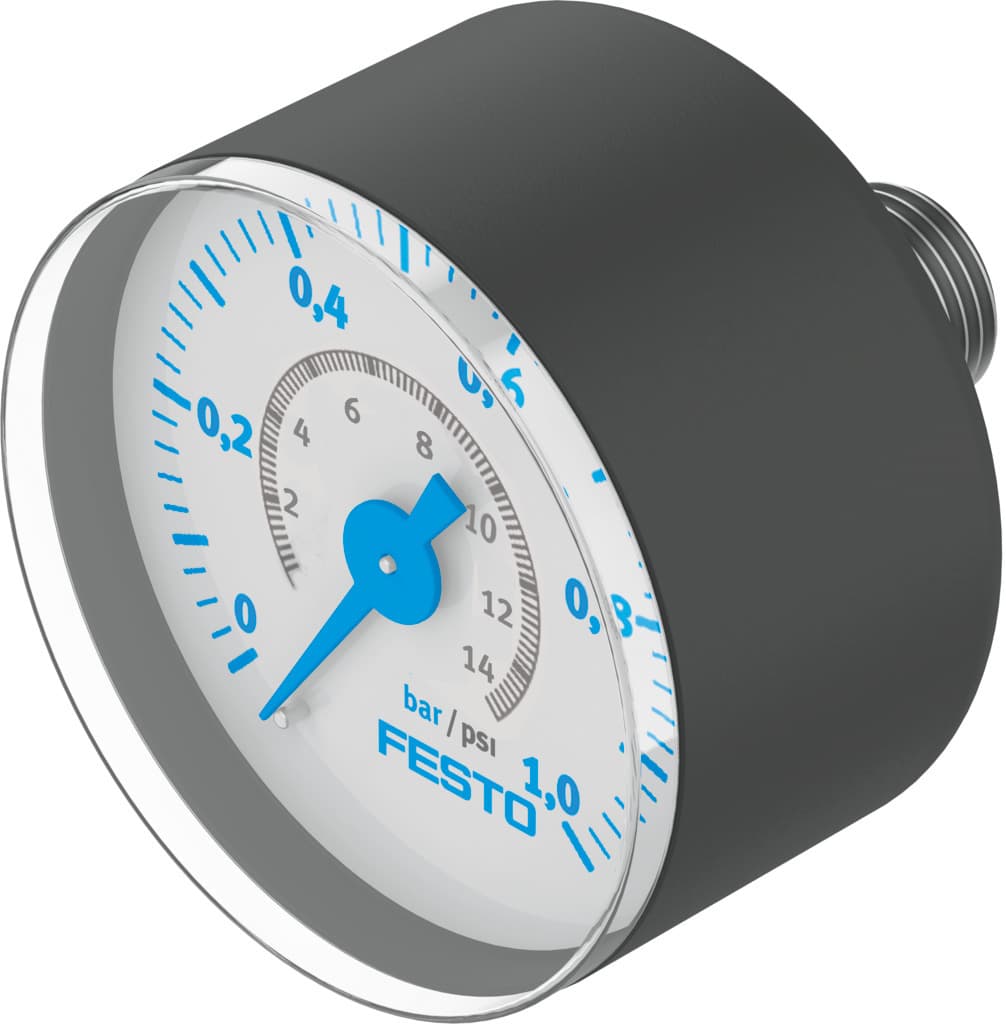

map-40-1-1/8-en
Product ID:4079
Updated: 2026/7/4
Key Features
- 1Achieve 1.6 accuracy class for precise pressure readings.
- 2Utilize a Bourdon tube design for reliable and consistent measurements.
- 3Safely monitor inert gases and neutral fluids with certified compatibility.
- 4Withstand harsh conditions using a durable polycarbonate housing.
- 5Simplify installation with an in-line design and centered rear connection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Display range | 0psi 14.5psi | Symbol | 00991463 |
| Conforms to standard | EN 837-1 | Pressure gauge nominal size | 40 |
| Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Structural design | Bourdon tube pressure gauge |
| Type of mounting | Line installation | Operating medium | Inert gas Neutral liquids |
| Information on operating and pilot media | No acetylene No oxygen | Operating pressure | 0psi 14.5psi |
| Intermittent load factor | 0.66 | Measurement accuracy class | 1.6 |
| Degree of protection | IP43 | Temperature of medium | -20°C 60°C |
| Ambient temperature | -20°C 60°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS-compliant | Connection position | Centered on rear side |
| Pneumatic connection | R1/8 | Materials in contact with the media | Brass |
| Material of screwed plug | Brass | Housing material | PBT |
| Inspection window material | PS | Housing colour | Black |
| Product weight | 60g | Scale | Double scale bar (au?en) psi (internal) |
| Manufacturer ID | 161126 |
Specifications may be subject to change without notice
